AODES · 3-Seat HVAC Cab UTV
WorkCross 1000-3 HVAC
Engine
976cc V-Twin
Cab
Enclosed HVAC
Towing
800 kg (1,760 lb)
Top speed
62 mph

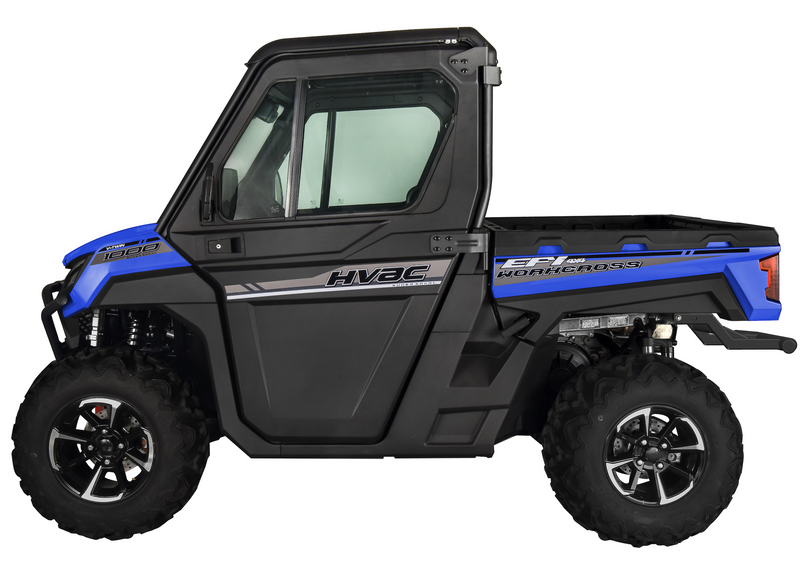

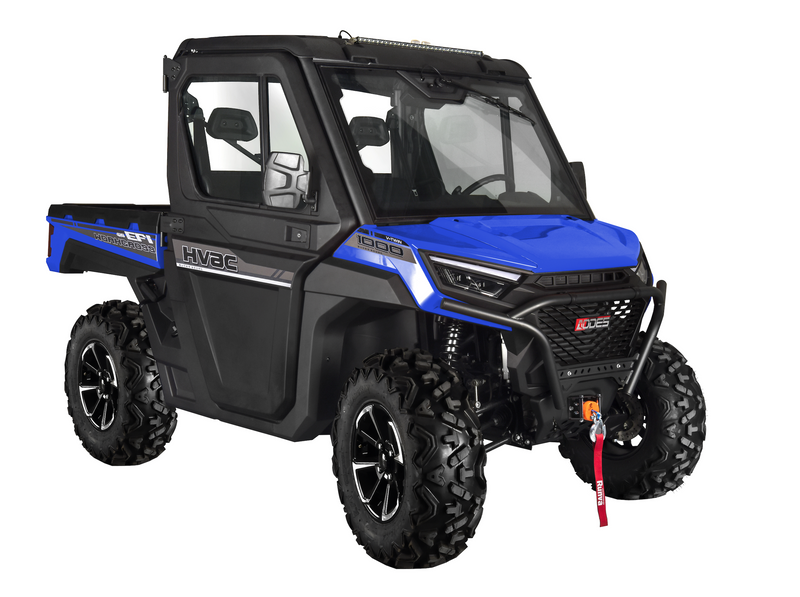

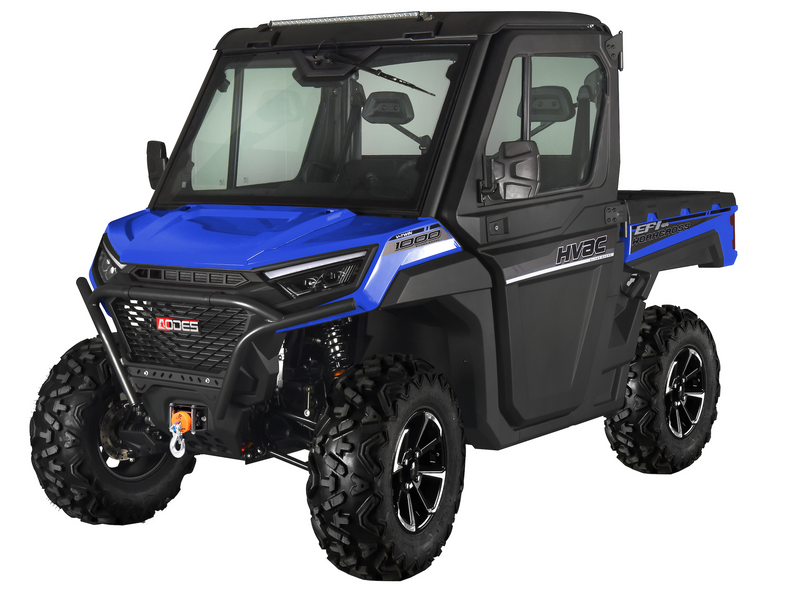

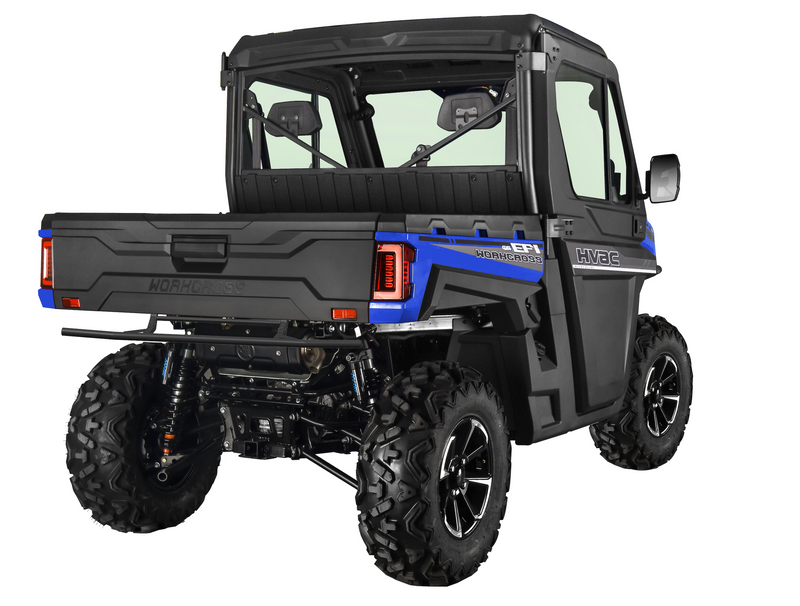

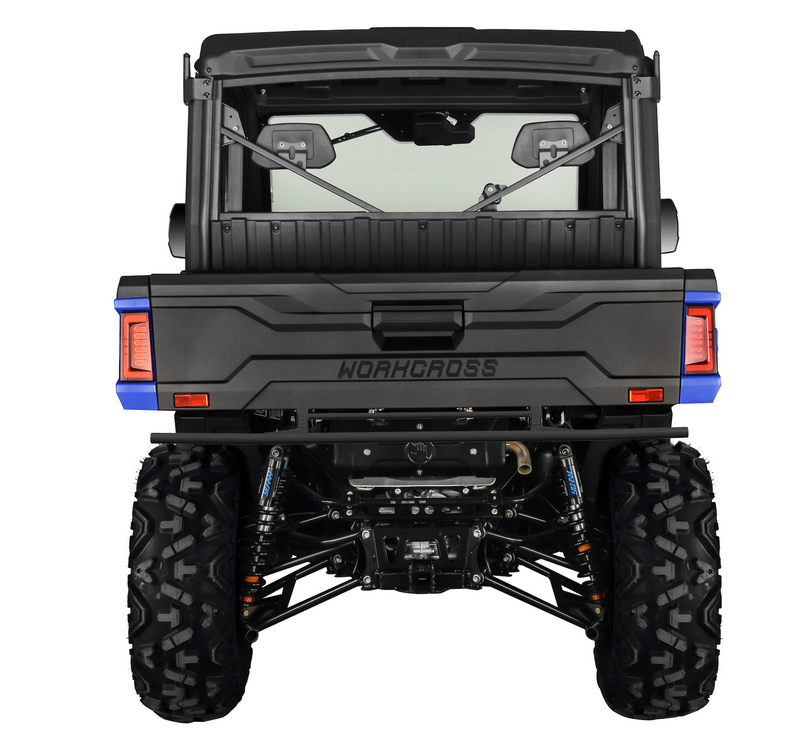

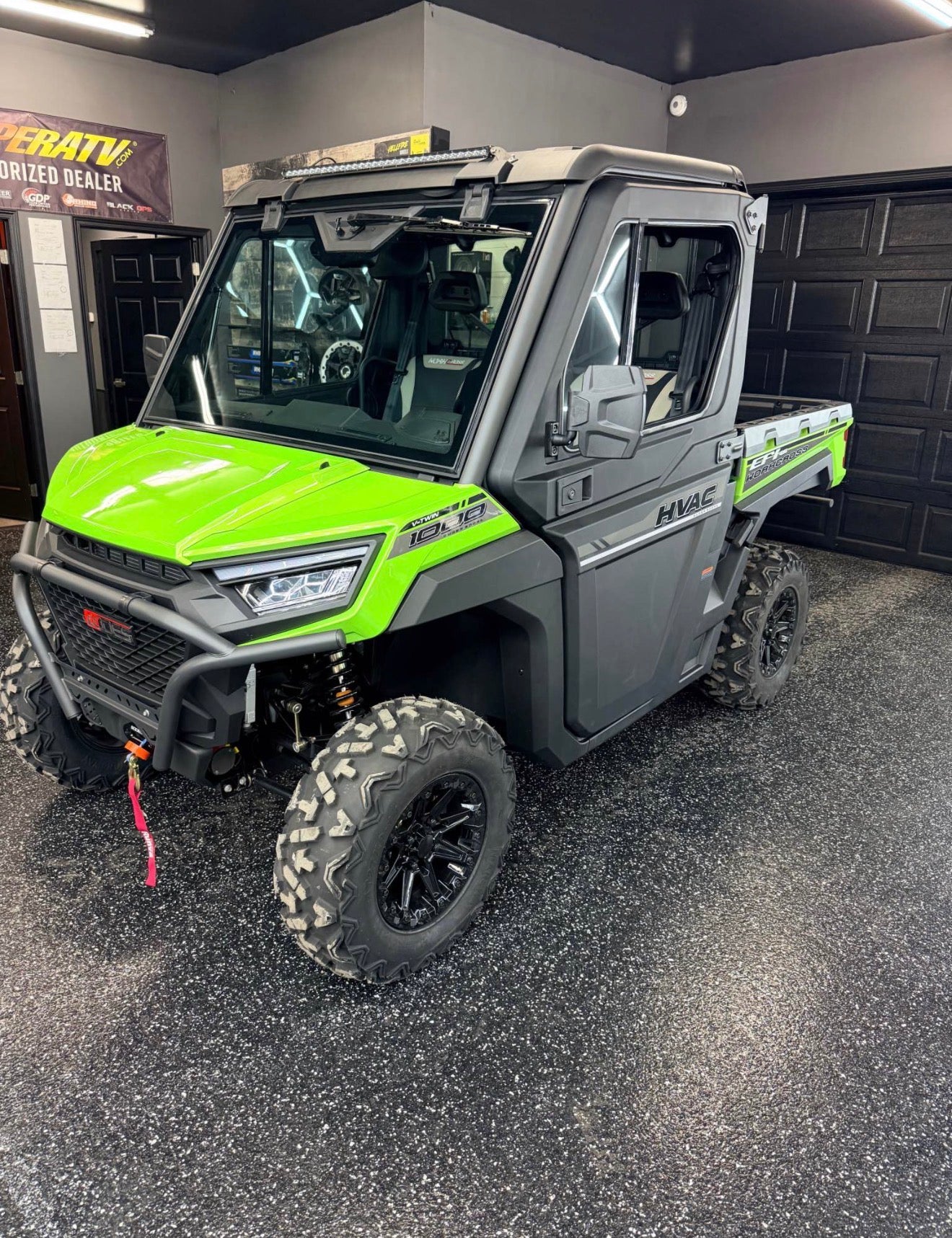

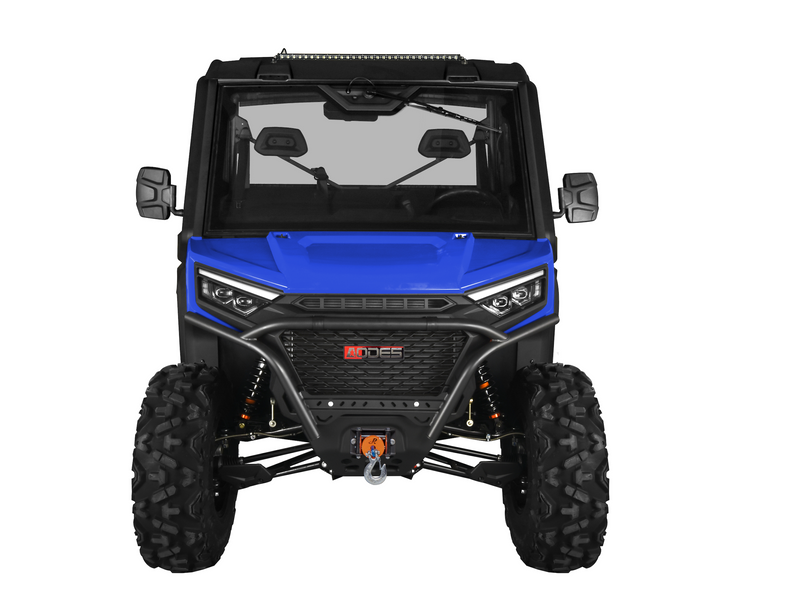

Gallery
Overview
The flagship, climate-controlled
The WorkCross 1000-3 HVAC is the flagship of the WorkCross line — a fully enclosed, climate-controlled cab wrapped around a 976cc V-twin making 53 kW and 85 N·m. Hydraulic airbag suspension and 310 mm of ground clearance soak up rough ground while keeping the ride smooth.
Heat and A/C mean you work in comfort year-round, and with 800 kg of towing, a built-in 3,500 lb winch and a 100 km/h top end, it does the job and then some.
Key features
- 976cc V-twin 4-stroke, EFI
- 53 kW (≈71 hp) @ 6500 rpm · 85 N·m torque
- Enclosed cabin with HVAC — heat & A/C
- Hydraulic airbag suspension
- 310 mm ground clearance
- 800 kg (1,760 lb) towing · 3,500 lb winch
- CVT transmission (L-H-N-R-P)
Available colors
Standard equipment & highlights
- 976cc V-twin 4-stroke EFI engine
- Enclosed cabin with HVAC (heat & A/C)
- Hydraulic airbag damping suspension
- CVT transmission (L-H-N-R-P)
- 310 mm ground clearance
- 48 L fuel tank
- 800 kg towing capacity
- 3,500 lb winch
- Alloy wheels · electric start · liquid cooled

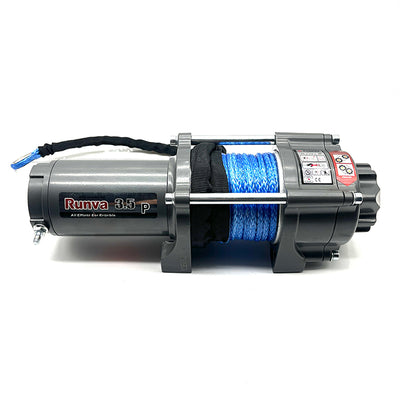

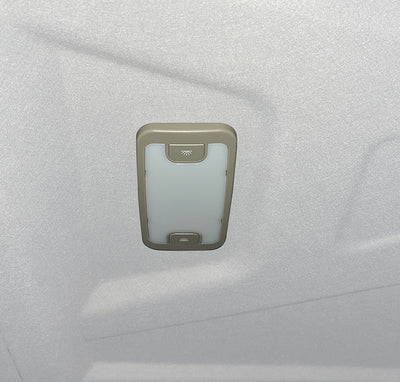

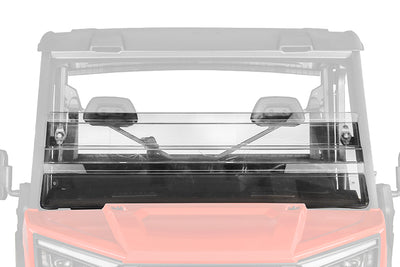

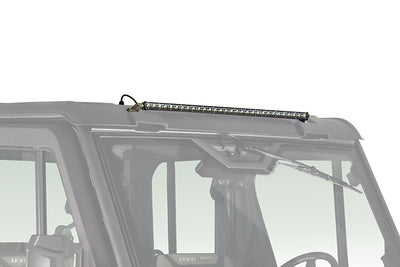

Optional accessories
Full specifications
| Engine | |
|---|---|
| Engine type | V-Twin Cylinder, 4-Stroke |
| Displacement | 976 cc |
| Bore × Stroke | 91 × 75 mm |
| Fuel system | EFI |
| Max power | 53 kW / 6500 rpm |
| Max torque | 85 N·m / 5500 rpm |
| Cooling | Liquid Cooled |
| Starter | Electric |
| Transmission | CVT, L-H-N-R-P |
| Suspension & Wheels | |
| Front / rear suspension | Double A-Arm Independent |
| Suspension travel | F 254 mm / R 245 mm |
| Front rim / tires | Alloy Wheel 27×9-R15 |
| Rear rim / tires | Alloy Wheel 27×11-R15 |
| Shocks | Hydraulic Airbag Damping Shock |
| Dimensions & Weight | |
| Length × Width × Height | 3995 × 1700 × 2090 mm |
| Wheelbase | 2145 mm |
| Ground clearance | 310 mm |
| Cargo bed | 920 × 1260 × 285 mm |
| Fuel capacity | 48 L |
| Dry weight | 844 kg |
| Curb weight | 885 kg |
| Gross vehicle weight | 1463 kg |
| Towing capacity | 1760 lb (800 kg) |
| Winch capacity | 3500 lb |
| Top speed | 100 km/h (62 mph) |
| Turning radius | 5 m |
| Colors | |
| Available colors | Radiant Red, Titanium Grey, Glacier Silver, Fire Green, Obsidian Black, Desert Tan, True Timber, Pearl White, Sky Blue, Army Green |
Specifications provided by AODES and subject to change. Call (816) 558-6075 for current pricing and availability.
