AODES · 6-Seat HVAC Crew Cab · Texas Edition
WorkCross 1000CC-6 Texas Bounty Edition
Engine
976cc V-Twin
Seating
6 passengers
Cab
Enclosed HVAC
Top speed
62 mph

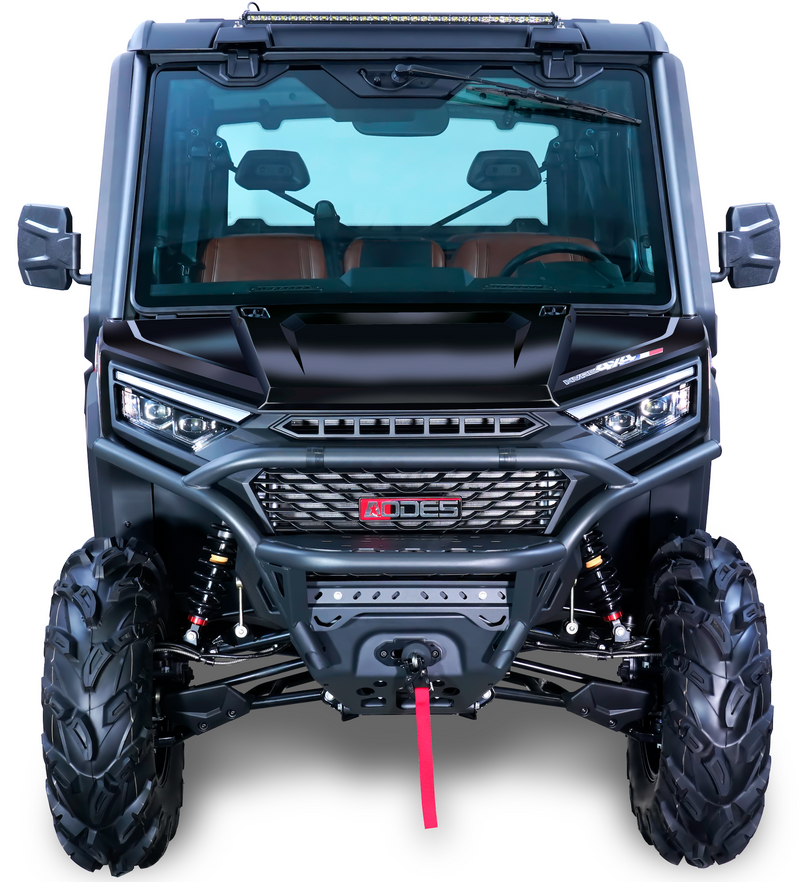

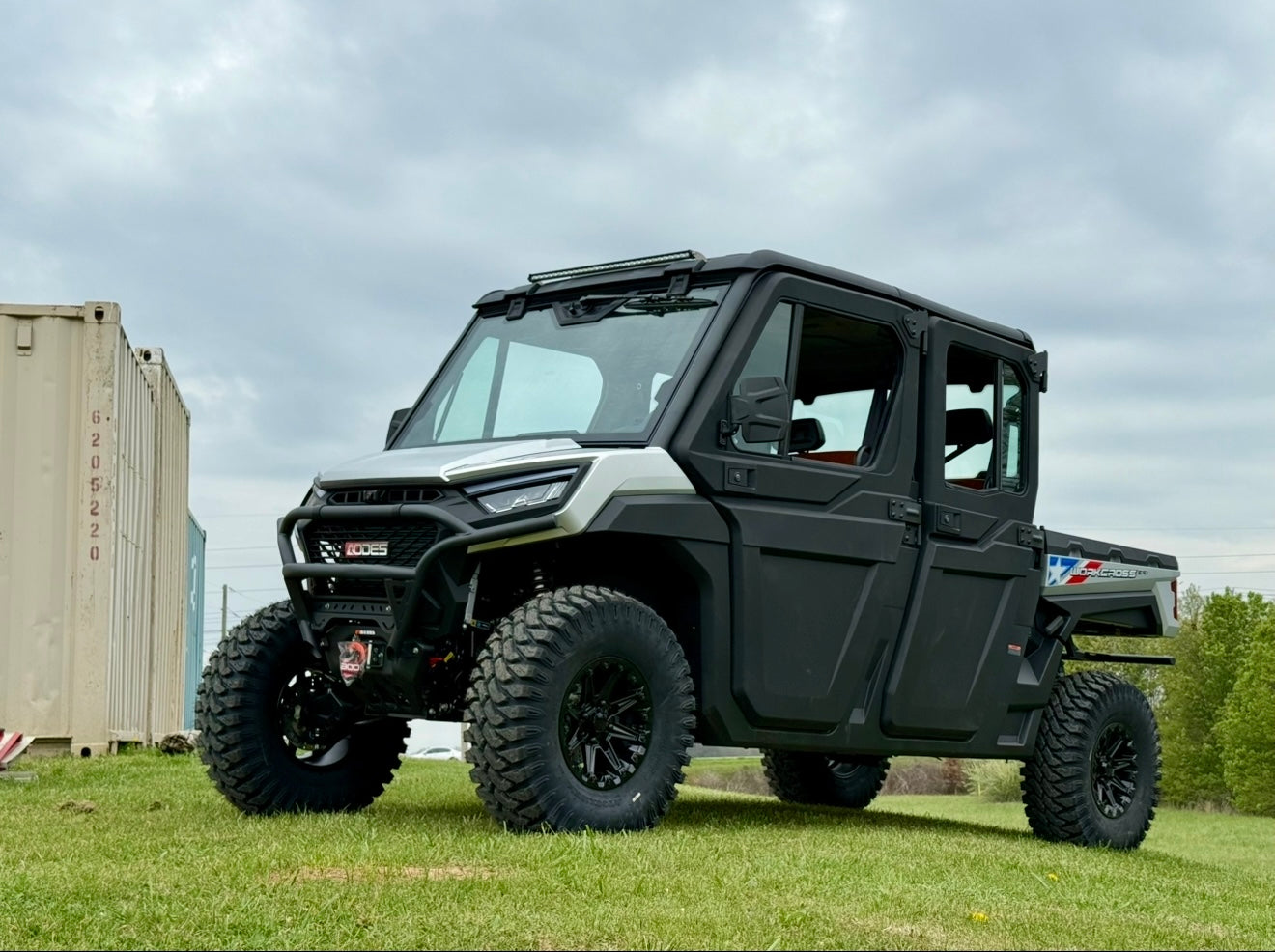

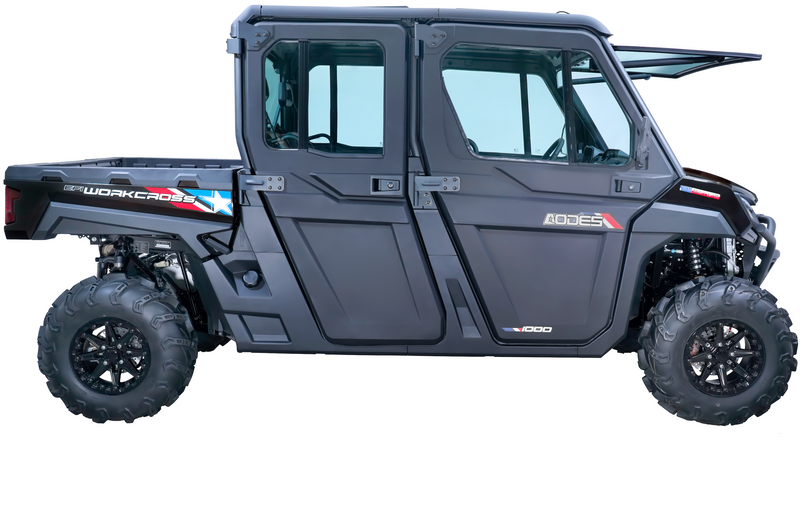

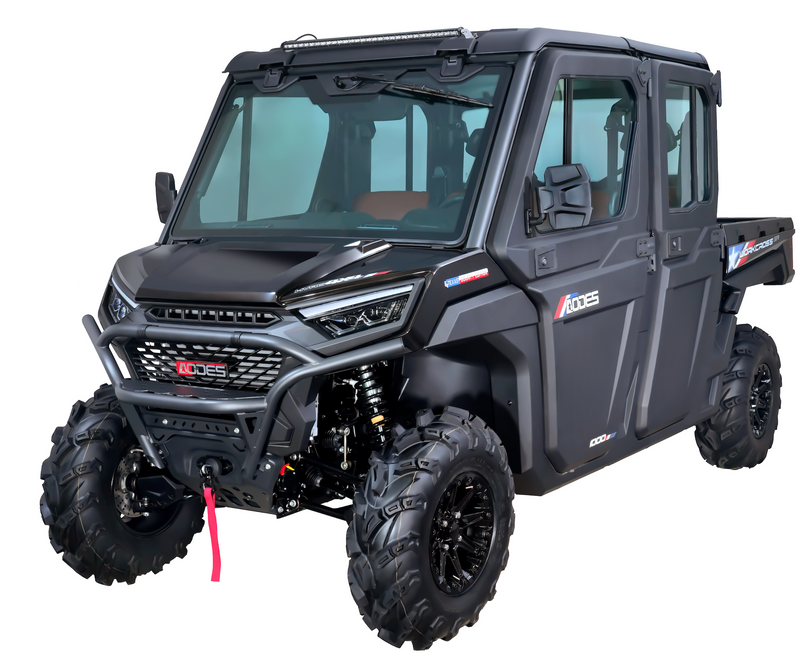

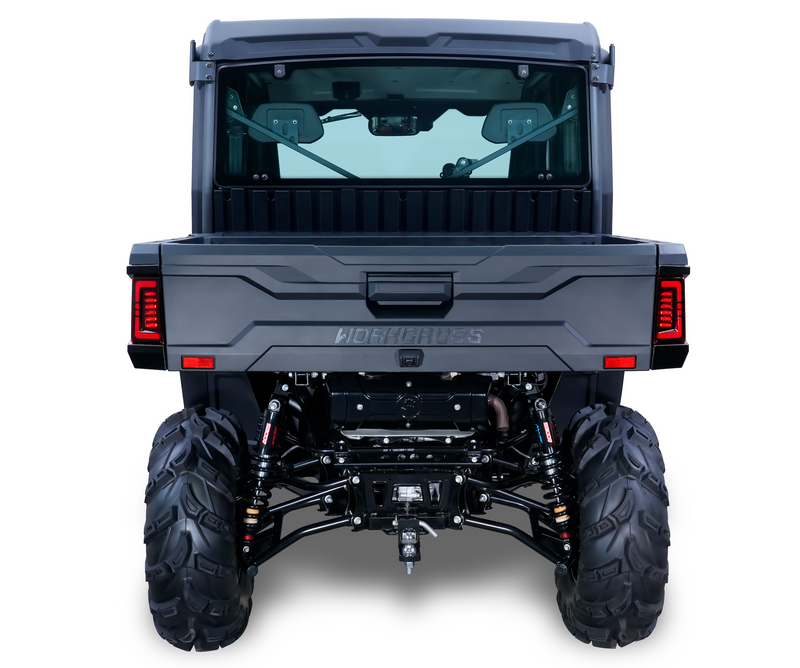

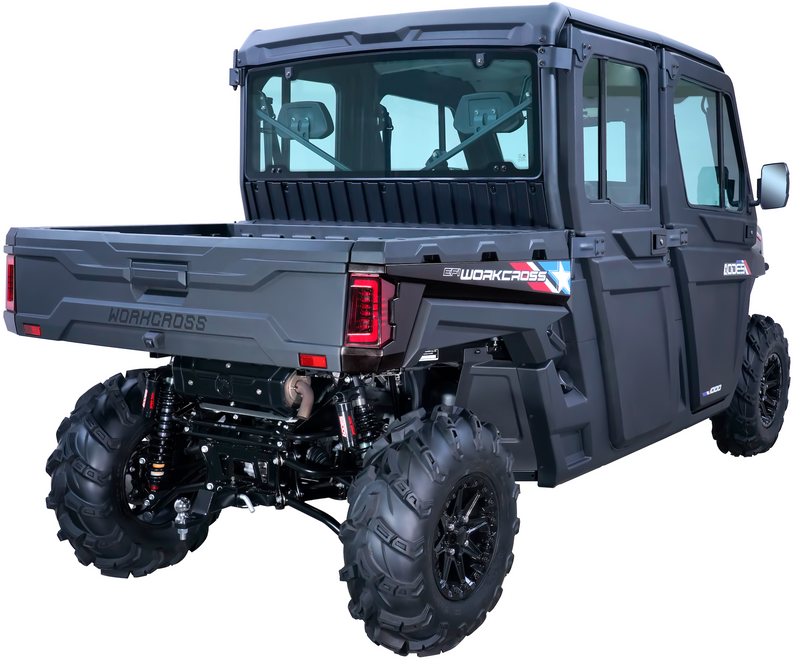

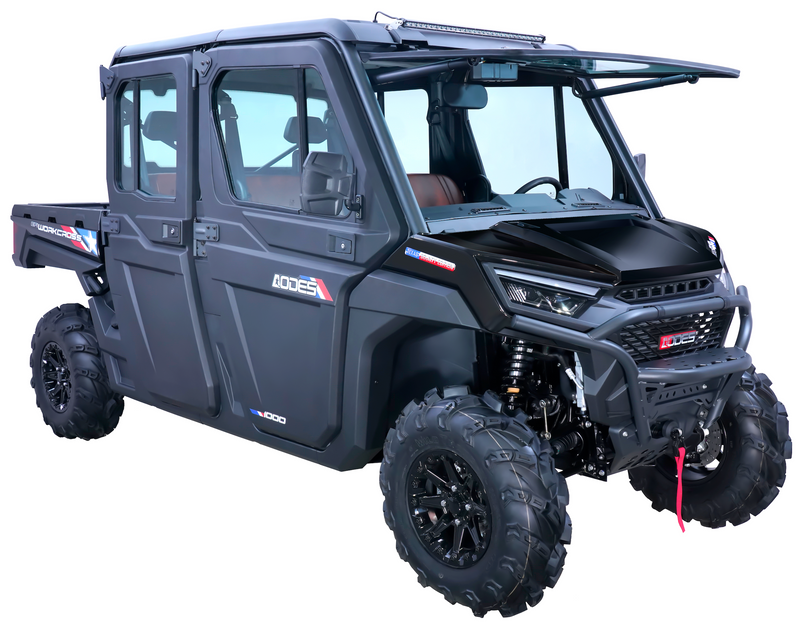

Gallery
Overview
The six-seat crew hauler
The WorkCross 1000-6 HVAC Texas Edition is the crew hauler of the lineup — a six-seat premium utility layout inside a fully enclosed HVAC climate cabin, powered by the same 976cc V-twin (53 kW / 85 N·m) as the 1000-3.
A long 2,970 mm wheelbase, hydraulic airbag suspension and 310 mm of ground clearance keep the whole crew comfortable, while 800 kg of towing and a 1,000 lb bed mean it works as hard as it rides.
Key features
- 976cc V-twin 4-stroke, EFI
- 53 kW (≈71 hp) @ 6500 rpm · 85 N·m torque
- Integrated HVAC climate cabin — heat & A/C
- 6-seater premium utility layout
- Hydraulic airbag suspension
- 310 mm ground clearance
- 800 kg (1,760 lb) towing · 1,000 lb bed
Available colors
Standard equipment & highlights
- 976cc V-twin 4-stroke EFI engine
- Integrated HVAC climate cabin (heat & A/C)
- 6-seater premium utility layout
- Hydraulic airbag damping suspension
- CVT transmission (L-H-N-R-P)
- 310 mm ground clearance
- 48 L fuel tank
- 800 kg towing · 1,000 lb (454 kg) bed
- Alloy wheels · electric start · liquid cooled

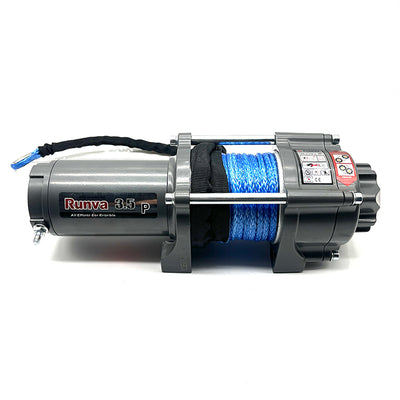

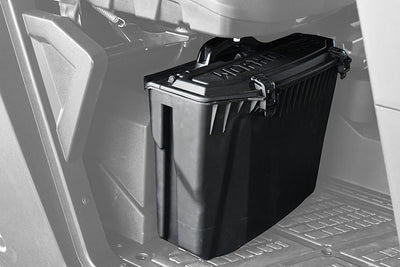

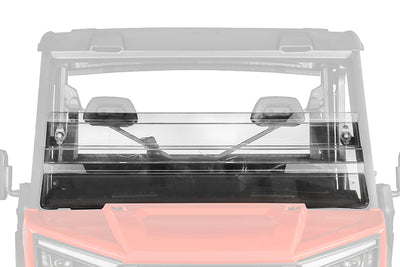

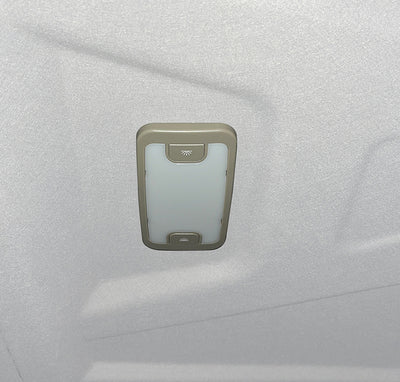

Optional accessories
Full specifications
| Engine | |
|---|---|
| Engine type | V-Twin Cylinder, 4-Stroke |
| Displacement | 976 cc |
| Bore × Stroke | 91 × 75 mm |
| Fuel system | EFI |
| Max power | 53 kW / 6500 rpm |
| Max torque | 85 N·m / 5500 rpm |
| Cooling | Liquid Cooled |
| Starter | Electric |
| Transmission | CVT, L-H-N-R-P |
| Suspension & Wheels | |
| Front / rear suspension | Double A-Arm Independent |
| Front / rear travel | F 254 mm / R 245 mm |
| Front rim / tires | Alloy Wheel 27×9-R15 |
| Rear rim / tires | 27×11-R15 |
| Shocks | Hydraulic Airbag Damping |
| Dimensions & Weight | |
| Length × Width × Height | 3995 × 1700 × 2090 mm |
| Wheelbase | 2970 mm |
| Ground clearance | 310 mm |
| Cargo bed | 920 × 1260 × 285 mm |
| Bed capacity | 1000 lb (454 kg) |
| Fuel capacity | 48 L |
| Dry weight | 1017 kg |
| Curb weight | 1060 kg |
| Gross vehicle weight | 1638 kg |
| Towing capacity | 1760 lb (800 kg) |
| Top speed | 100 km/h (62 mph) |
| Turning radius | 6 m |
| Colors | |
| Available colors | Radiant Red, Titanium Grey, Glacier Silver, Fire Green, Obsidian Black, Desert Tan, True Timber, Pearl White, Sky Blue, Army Green |
Specifications provided by AODES and subject to change. Call (816) 558-6075 for current pricing and availability.
Interested in the WorkCross 1000CC-6 Texas Bounty Edition?
Reach out to Reed Cycles for pricing, availability and a walkaround. We'll get you the details.
