AODES · 3-Seat Utility UTV

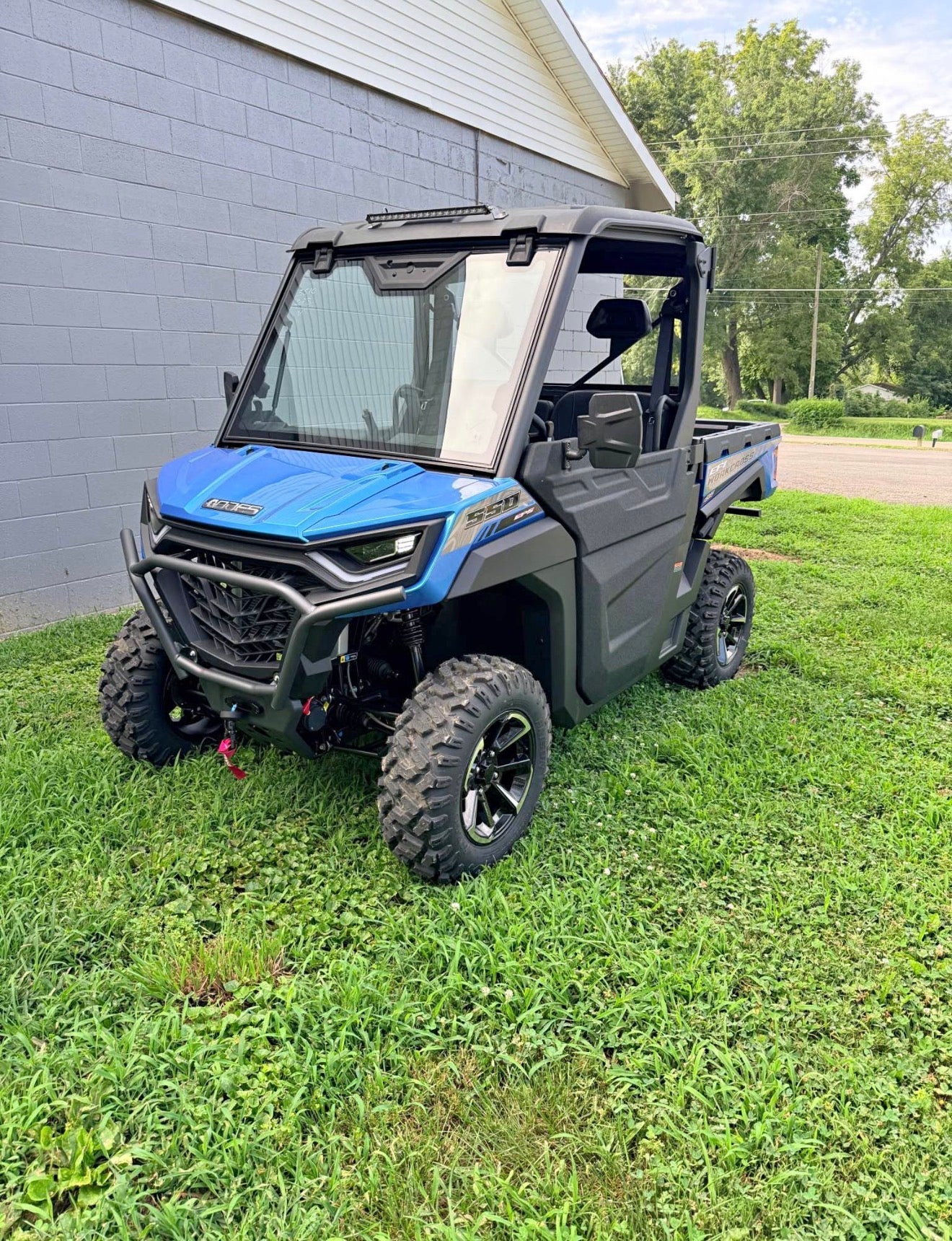

WorkCross 550-3
Engine
495cc Single-Cyl
Seating
3 passengers
Towing
800 kg (1,763 lb)
Top speed
53 mph

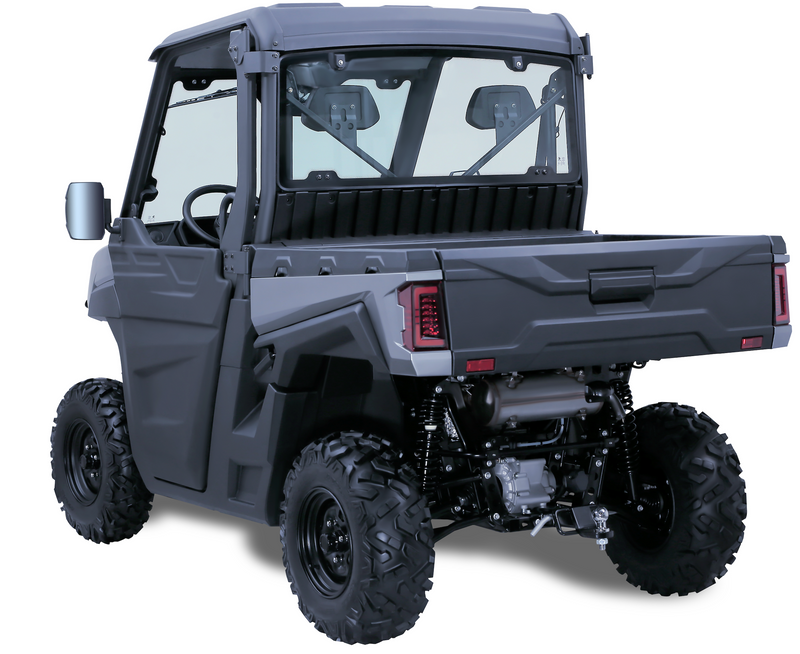

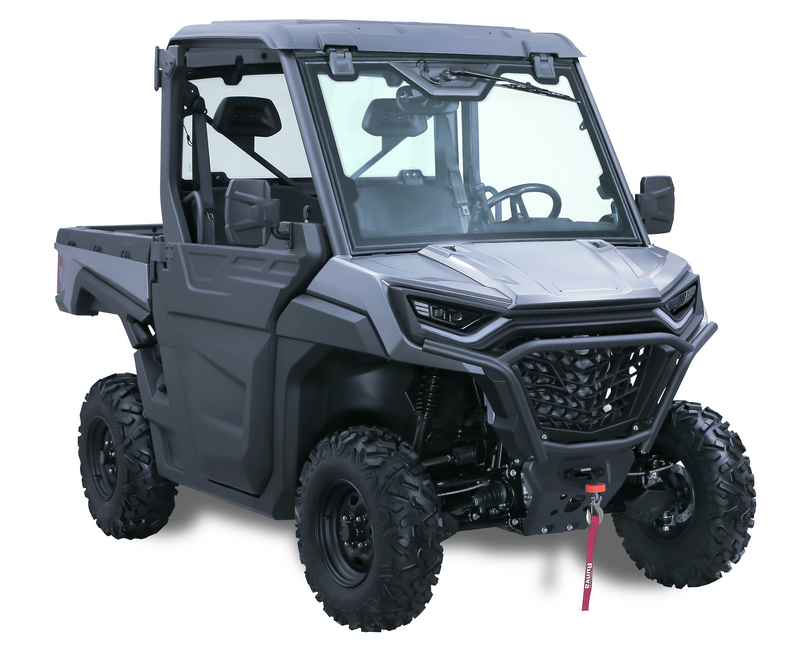

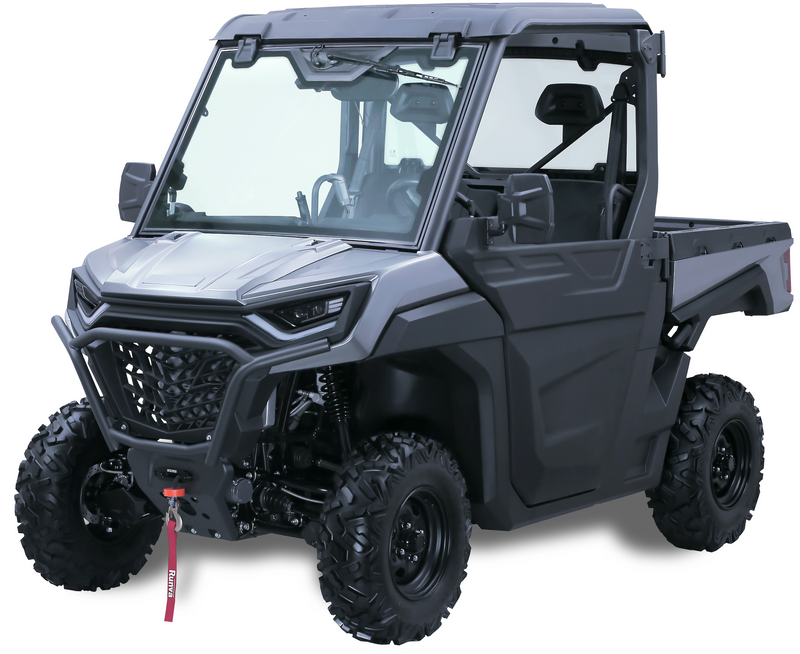

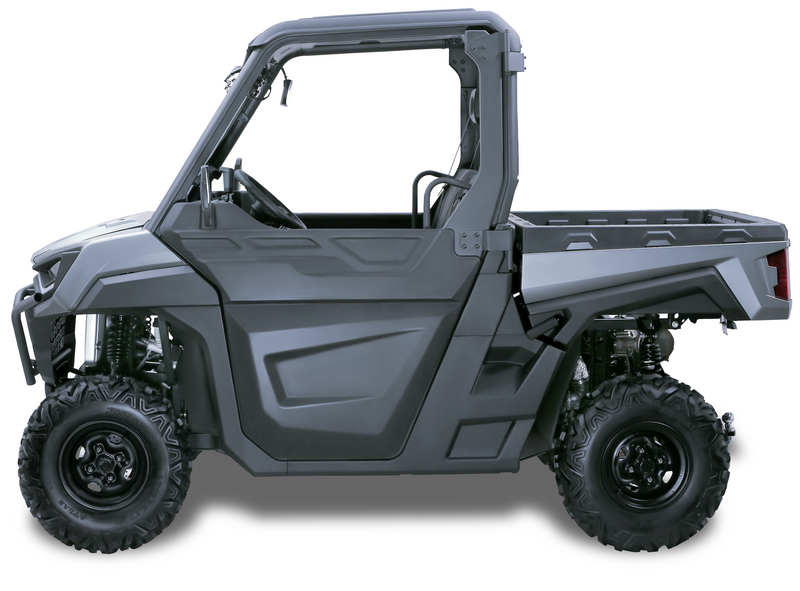

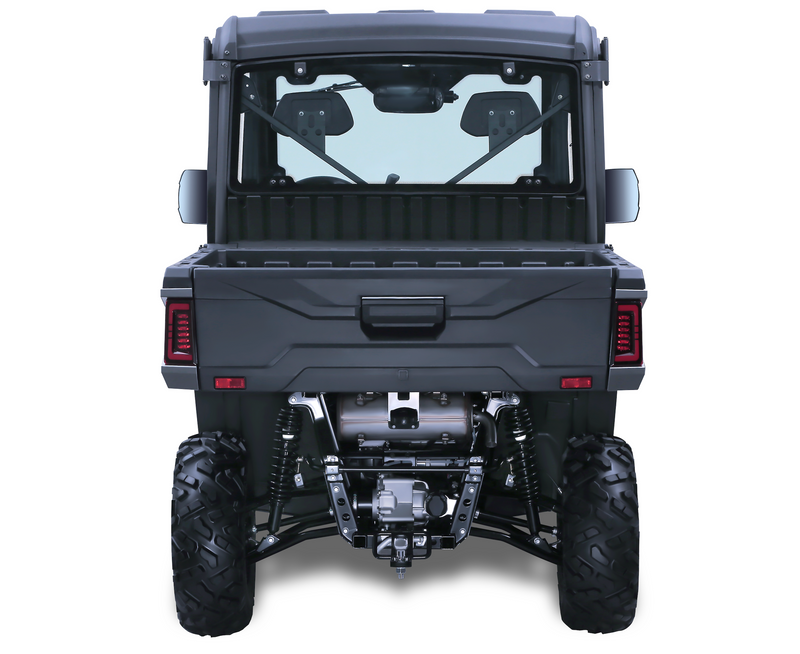

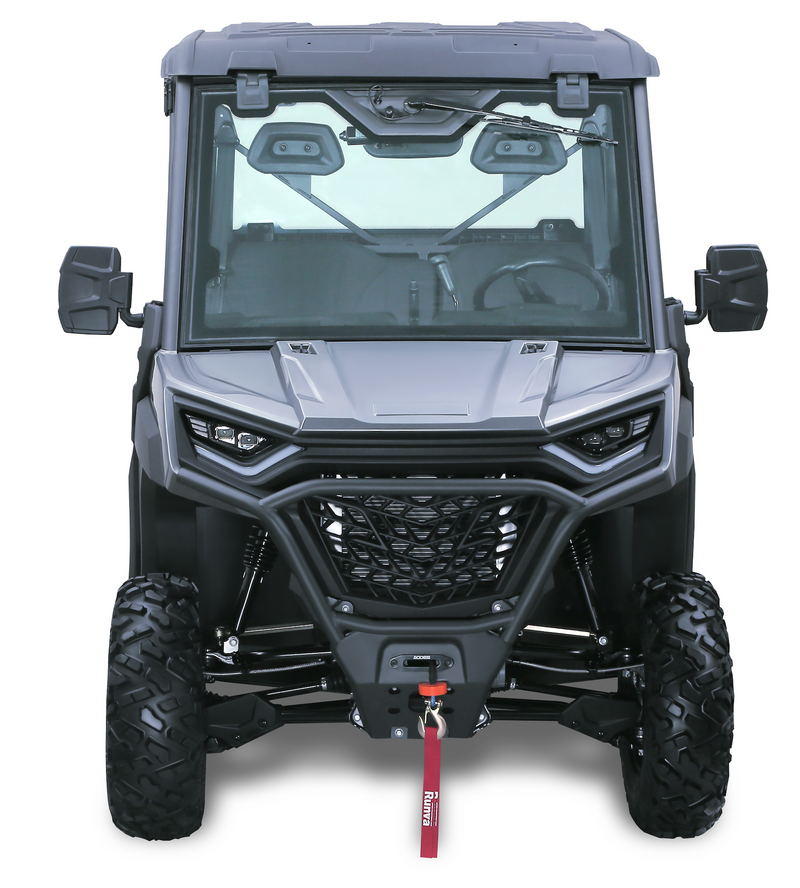

Gallery
Overview
The do-everything utility rig
The WorkCross 550-3 is AODES' do-everything utility side-by-side. A 495cc EFI single paired with a CVT drivetrain delivers 28 kW and 46 N·m, while double A-arm suspension and 275 mm of ground clearance keep it planted on rough ground.
With 800 kg of towing, a 250 kg dump bed, a built-in 3,500 lb winch and three-across seating, it's built for the long workday — and quick enough at 53 mph to make the trail ride home fun.
Key features
- 495cc single-cylinder 4-stroke, EFI
- 28 kW (≈38 hp) @ 6800 rpm · 46 N·m torque
- CVT transmission (L-H-N-R-P)
- Double A-arm independent suspension
- 275 mm ground clearance
- 800 kg (1,763 lb) towing capacity

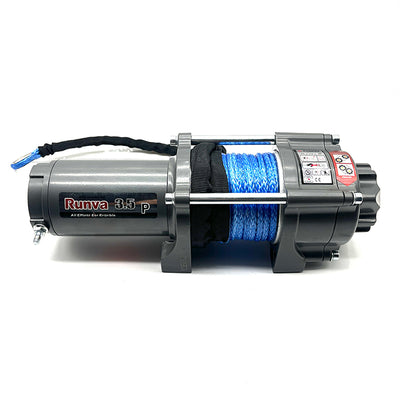

- 3,500 lb winch · 250 kg dump bed
Available colors
Standard equipment & highlights
- 495cc single-cylinder 4-stroke EFI engine
- CVT transmission (L-H-N-R-P)
- Double A-arm independent suspension, oil-damped shocks
- 275 mm ground clearance
- 35 L fuel tank
- 800 kg towing capacity
- 3,500 lb winch
- Electric start · liquid cooled
- 12V 32Ah battery

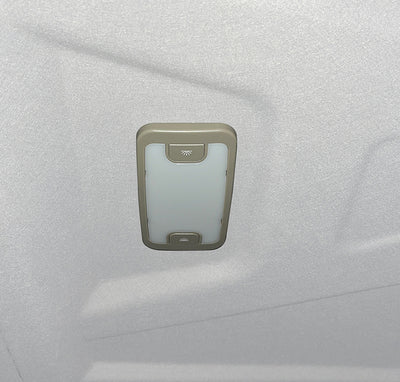

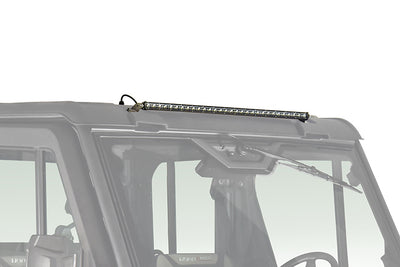

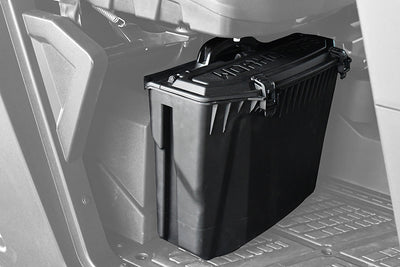

Optional accessories
Full specifications
| Engine | |
|---|---|
| Engine type | Single Cylinder, 4-Stroke |
| Displacement | 495.3 cc |
| Bore × Stroke | 91 × 76.2 mm |
| Fuel system | Electronic Fuel Injection |
| Max power | 28 kW / 6800 rpm |
| Max torque | 46 N·m / 5800 rpm |
| Cooling | Liquid Cooled |
| Starter | Electric |
| Transmission | CVT, L-H-N-R-P |
| Suspension & Wheels | |
| Front / rear suspension | Double A-Arm Independent |
| Suspension travel | F 200 mm / R 210 mm |
| Front rim / tires | Steel Wheel 25×8-12 |
| Rear rim / tires | Steel Wheel 25×10-12 |
| Shocks | Preloaded, Oil Damped |
| Dimensions & Weight | |
| Length × Width × Height | 2910 × 1460 × 1993 mm |
| Wheelbase | 1963 mm |
| Front tread | 1208 mm |
| Rear tread | 1098 mm |
| Ground clearance | 275 mm |
| Cargo bed | 800 × 1080 × 286 mm |
| Cargo bed capacity | 551 lb (250 kg) |
| Winch capacity | 3500 lb |
| Fuel capacity | 35 L |
| Dry weight | 618 kg |
| Curb weight | 650 kg |
| Max carrying capacity | 400 kg |
| Gross vehicle weight | 1050 kg |
| Towing capacity | 1763 lb (800 kg) |
| Battery | 12V 32Ah |
| Max speed | 85 km/h (53 mph) |
| Turning radius | 4.6 m |
| Colors | |
| Available colors | Radiant Red, Titanium Grey, Glacier Silver, Fire Green, Obsidian Black, Desert Tan, True Timber, Pearl White, Sky Blue, Army Green |
Specifications provided by AODES and subject to change. Call (816) 558-6075 for current pricing and availability.
