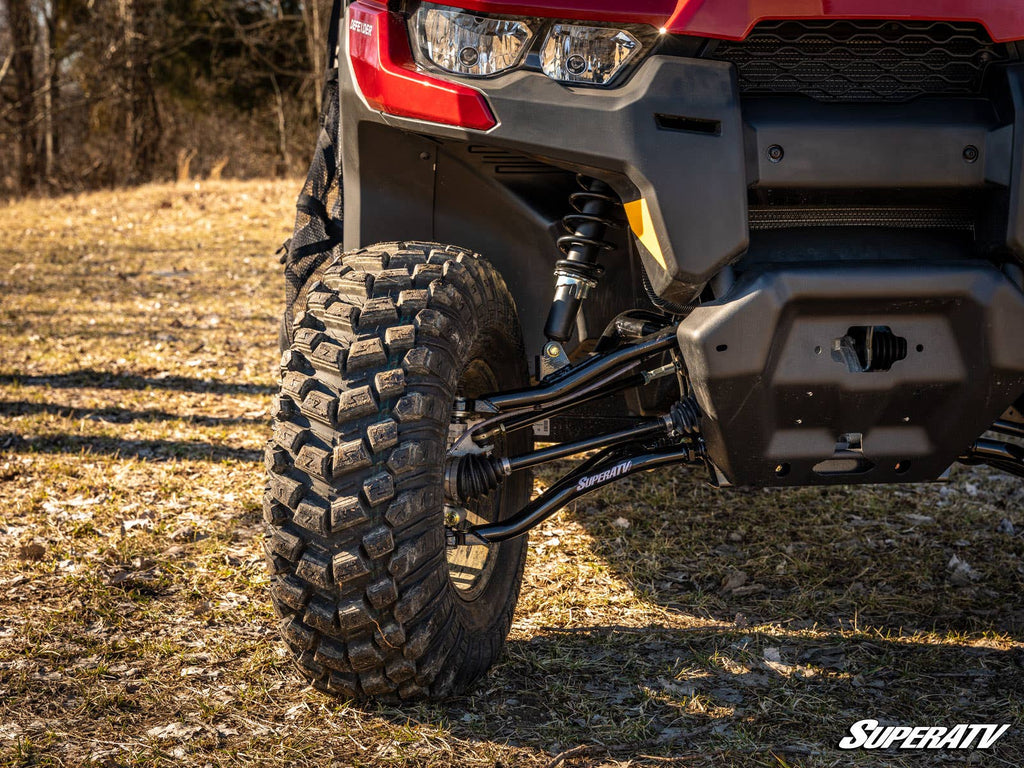

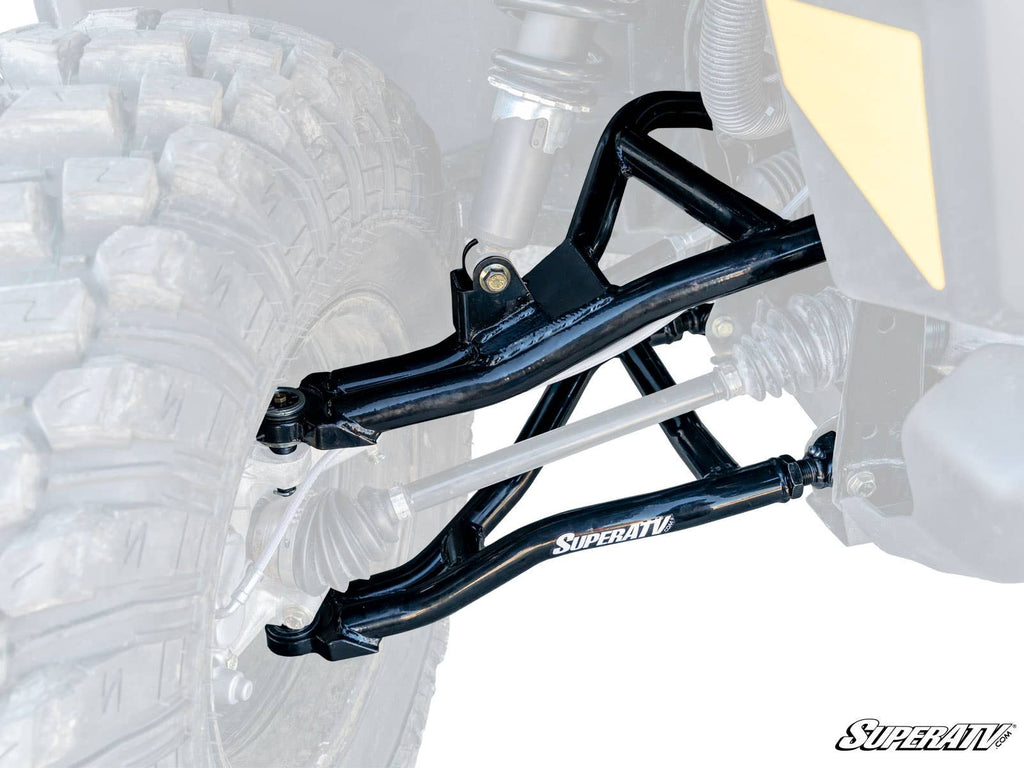

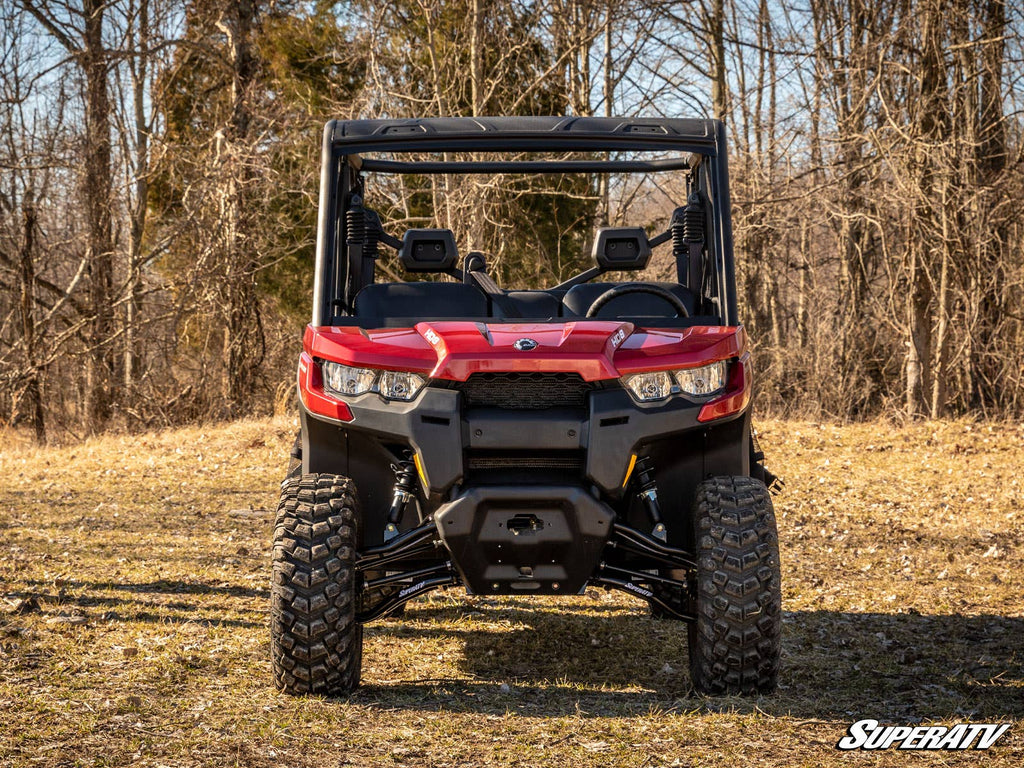

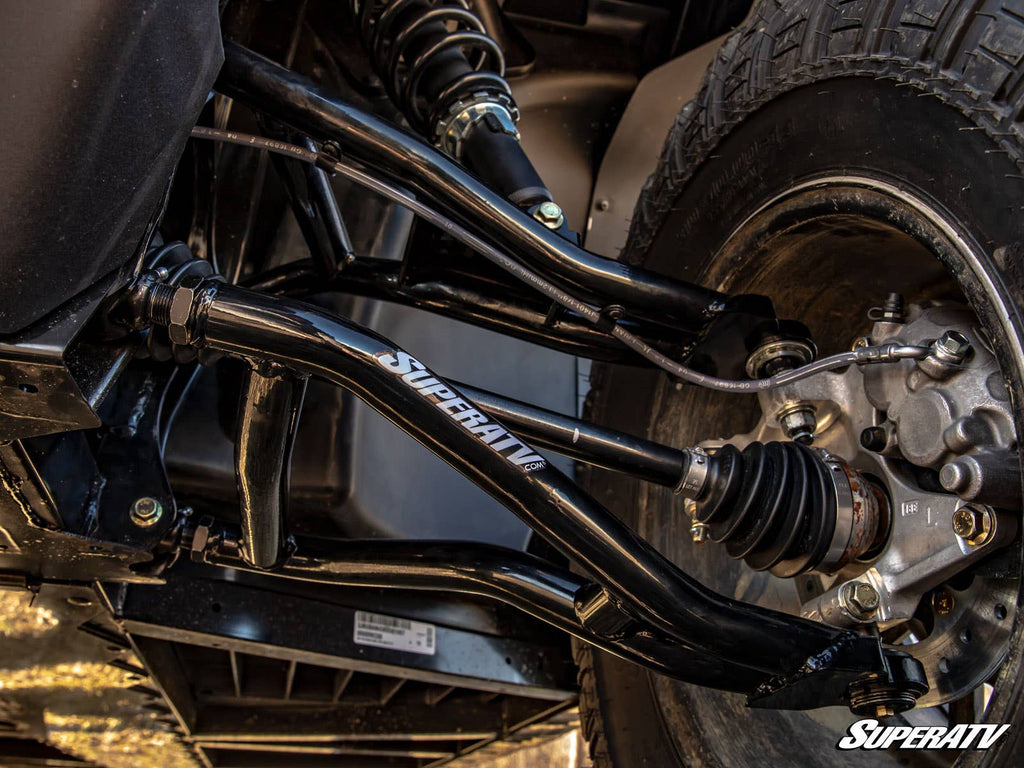

CAN-AM DEFENDER HD10 HIGH-CLEARANCE 2" FORWARD OFFSET A-ARMS

CAN-AM DEFENDER HD10 HIGH-CLEARANCE 2" FORWARD OFFSET A-ARMS

Prime Ingredients for Awesome Suspension

Your Can-Am Defender HD10 was meant to conquer the trails, the mud, and wherever you decide to take it. SuperATV’s High-Clearance 2” Forward Offset A-Arms make that easier. Room for up to 32” tires without a lift kit and an offset for more stability are the prime ingredients for taking on any turf. Topping it all off is heavy-duty 1.25” tubing that’s stronger than OEM. With these arms on your Defender, nothing stands in your way.

Extra Clearance, Extra Offset, and Extra Fun

A longer wheelbase, extra ground clearance, and larger tires make up the essential elements to having more fun. Our control arms are designed with a special bend that adds an extra 1.5” of ground clearance. You’ll glide over obstacles for a smoother ride. The 2” forward offset gives you space for up to 32” tires and more stability.

SuperATV Builds It Tougher

Your buddies won’t be able to stop staring at these Can-Am Defender forward A-arms. Durable tubing with a powder-coat finish gives you the best of both worlds—looks and strength. These control arms measure 1.25” in diameter, making them 25% larger than stock. The UV-resistant powder coating spices things up, while also making them last under any condition. You can keep riding on the wild side.

Kickass looks and unmatched strength should be enough, but to make things better, we’re selling these Can-Am Defender forward A-arms with a lifetime warranty. You have plenty of time to try and break them—good luck.

Control the Camber

Our adjustable pivot blocks are pre-adjusted to stock specs straight from the box. They let you fine-tune the camber, which helps prevent premature tire wear after adding a lift or more weight. The good news is that you only have to make changes if you want to.

Let SuperATV Do the Work—Preassembly Available!

Want to spend more time on the trails and less time in the garage? Purchase a set of SuperATV ball joints with your A-arms and we’ll install them for you for free! We save you money and time so you can get back to doing what you love.

NOTE: You must re-use your stock ball joints if you don’t select a pre-installed ball joint at checkout.

Heavy-Duty Ball Joints

Our heavy-duty ball joints are designed with ultimate performance and convenience in mind. Whether you’re doing flips or chasing hills, our proprietary blend of hardened 4340 VAR steel and zinc plating means this ball joint can take it. Our heavy-duty ball joints also come with easily-accessible grease zerks and an adjustable design. Extensive lab and field testing shows that our heavy duty ball joints can withstand double the pressure of an OEM ball joint!

Super-Duty 300M Ball Joints

We took the strongest ball joint material on the market—300M grade steel—and combined it with our superior design engineering to make the strongest ball joint on the market. It comes with an easily-accessible grease zerk and an adjustable steel-on-steel design, making it easy to keep your ball joints maintained and flexible. At 2.25x stronger than stock, you won’t find a better ball joint.

Keller Ball Joints

Keller Ball Joints use a two-piece design that eliminates the need for a snap ring. They thread onto your A-arms like a nut and bolt, which makes these ball joints virtually impossible to pull out. The high-quality chromoly steel stud combined with an advanced tool-steel body makes them perfect for bigger machines, bigger tires, and bigger rides. And since they’re greaseable and rebuildable, you can keep them running perfectly.

Frequently Asked Questions (FAQ)

What do high‑clearance 2” forward offset A‑arms do for my Defender HD10? These A‑arms improve three key areas at once: ground clearance, tire clearance, and stability. The special high‑clearance bend adds 1.5” of additional ground clearance, while the 2” forward offset lengthens the wheelbase for more stability and allows you to run larger tires.

What tire size can I run with these A‑arms? You can run up to 32” tires without a lift kit, which is a major upgrade over stock size. The forward offset moves the wheel away from the cab and firewall, preventing rubbing during turns and suspension travel.

How much extra ground clearance do these A‑arms provide? The high‑clearance tubing design adds 1.5” of under‑arm clearance, letting you slide over rocks, ruts, and roots instead of hanging up like stock straight arms often do.

Will these A‑arms fit my specific Can‑Am Defender HD10 model? These A‑arms fit a wide range of Defender HD10 and Defender MAX HD10 models, including XT, XMR, Limited, Lone Star, Pro, Pro Ltd Cab, and 6×6 variants. Always confirm your exact year and sub‑model before ordering.

Are these A‑arms stronger than stock? Yes. SuperATV builds them using 1.25” diameter tubing, which is 25% larger than OEM. They also feature chromoly pivot blocks and ball‑joint housings, along with a UV‑resistant powder‑coat finish for long‑term durability.

Do these A‑arms affect alignment or tire wear? They include adjustable lower pivot blocks that are pre‑set to stock camber out of the box. You can fine‑tune camber if needed, which helps prevent premature tire wear when running larger tires or adding weight.

Can I reuse my factory ball joints? Yes. You can reuse your stock ball joints, or choose preinstalled SuperATV ball joints at checkout. Preassembly saves time, eliminates the need for a press, and gets you back on the trail faster.

Is installation difficult? Installation is bolt‑on using factory mounting points and stock A‑arm bushings. All necessary hardware and instructions are included, making this upgrade approachable for most mechanically inclined owners.

What warranty do these A‑arms include? SuperATV backs these A‑arms with a lifetime warranty, giving you confidence that they’re built to handle hard riding, heavy work, and aggressive off‑road use for the long term.

Features

• Adds a 2” forward offset
• Adds 1.5” of ground clearance
• Run up to 32” tires
• 1.25” tubing is 25% larger than stock
• Adjustable lower pivot block for full camber adjustability
• Utilizes stock A-arm bushings
• UV-resistant powder coat finish
• Easy to install
• Backed by a lifetime warranty

Fitment

• Can-Am Defender HD 10 : 2016+
• Can-Am Defender HD 10 DPS : 2016+
• Can-Am Defender HD 10 Limited : 2020+
• Can-Am Defender HD 10 Mossy Oak : 2018+
• Can-Am Defender HD 10 Pro : 2020
• Can-Am Defender HD 10 Pro Ltd Cab : 2021+
• Can-Am Defender HD 10 XMR : 2018+
• Can-Am Defender HD 10 XT : 2016+
• Can-Am Defender HD 10 XT Cab : 2016+
• Can-Am Defender HD 10 XTP : 2018+
• Can-Am Defender HD 10 6x6 : 2020+
• Can-Am Defender HD 10 6x6 Limited : 2022+
• Can-Am Defender MAX HD 10 DPS : 2017+
• Can-Am Defender MAX HD 10 Limited : 2020+
• Can-Am Defender MAX HD 10 Lone Star Edition : 2018+
• Can-Am Defender MAX HD 10 XMR : 2019+
• Can-Am Defender MAX HD 10 XT : 2017+
• Can-Am Defender MAX HD 10 XT Cab : 2017+
