CAN-AM DEFENDER HD9 6" LIFT KIT

CAN-AM DEFENDER HD9 6" LIFT KIT

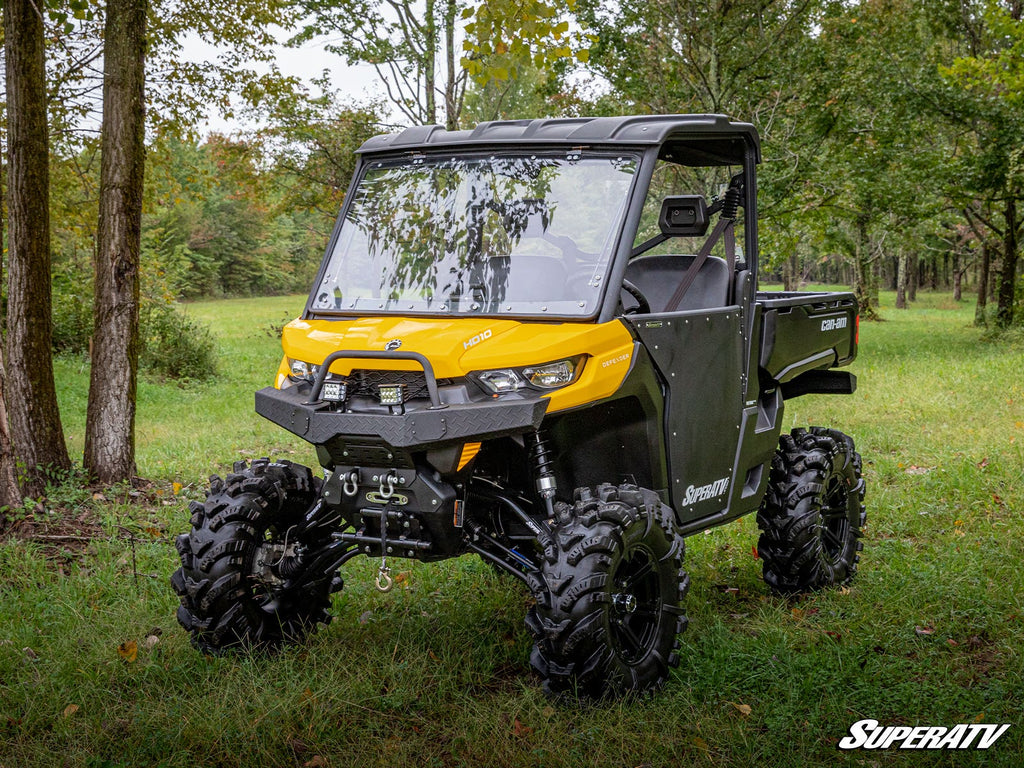

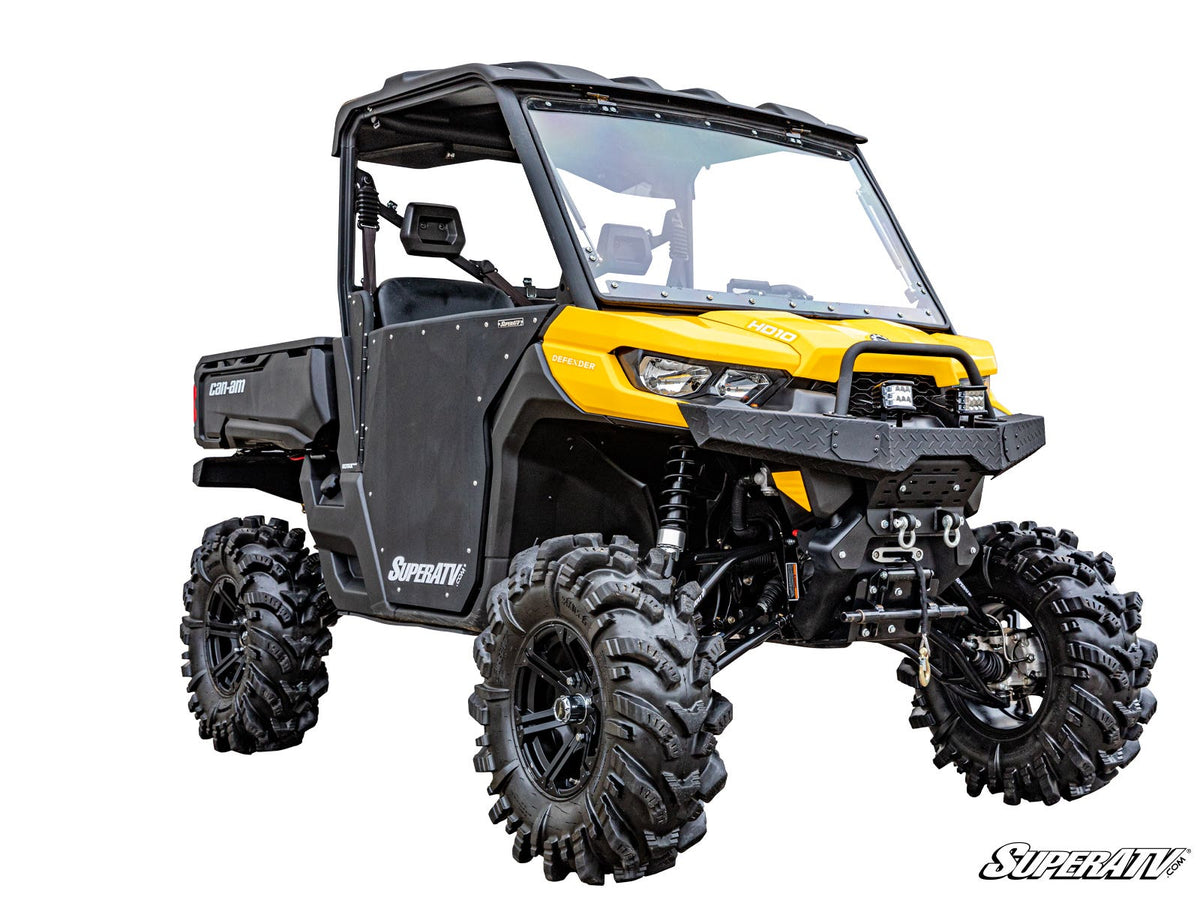

A Supreme Defender HD9 6” Lift Kit

Turn your Can-Am Defender HD9 into a true powerhouse with SuperATV’s 6” Lift Kit. It gives you 17” of ground clearance and more stability. You’ll also have the ability to run up to 34” tires. Plus, it comes with our heavy-duty Rhino 2.0 Axles. There’s nothing your machine won’t be able to conquer for work or for play.

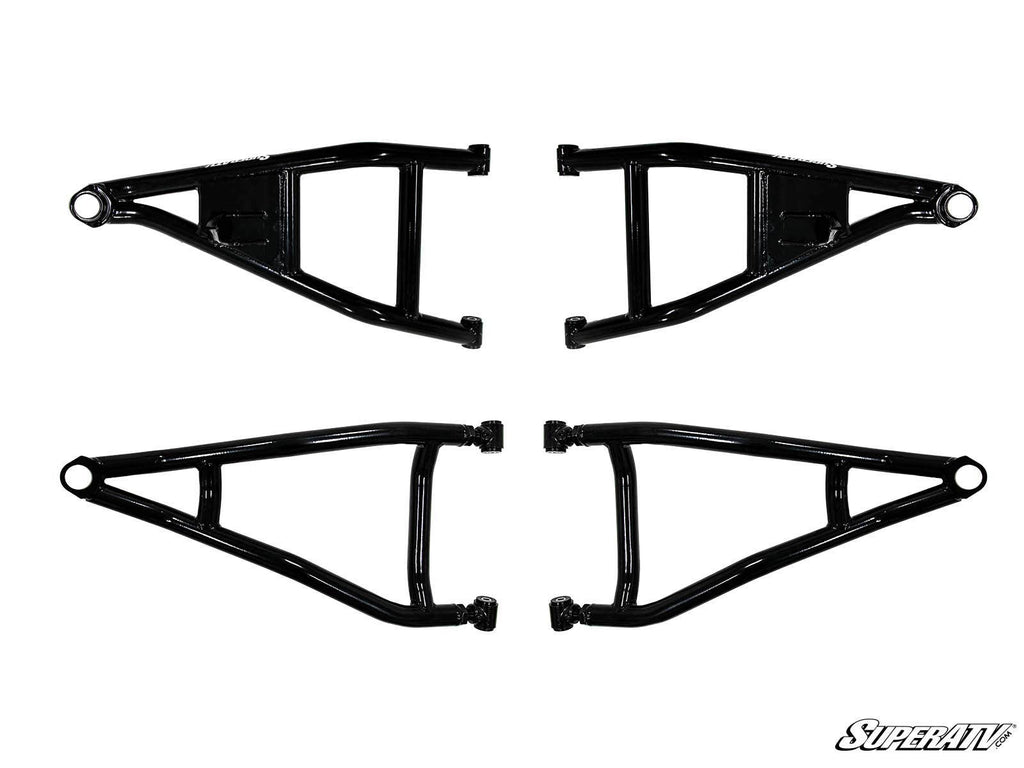

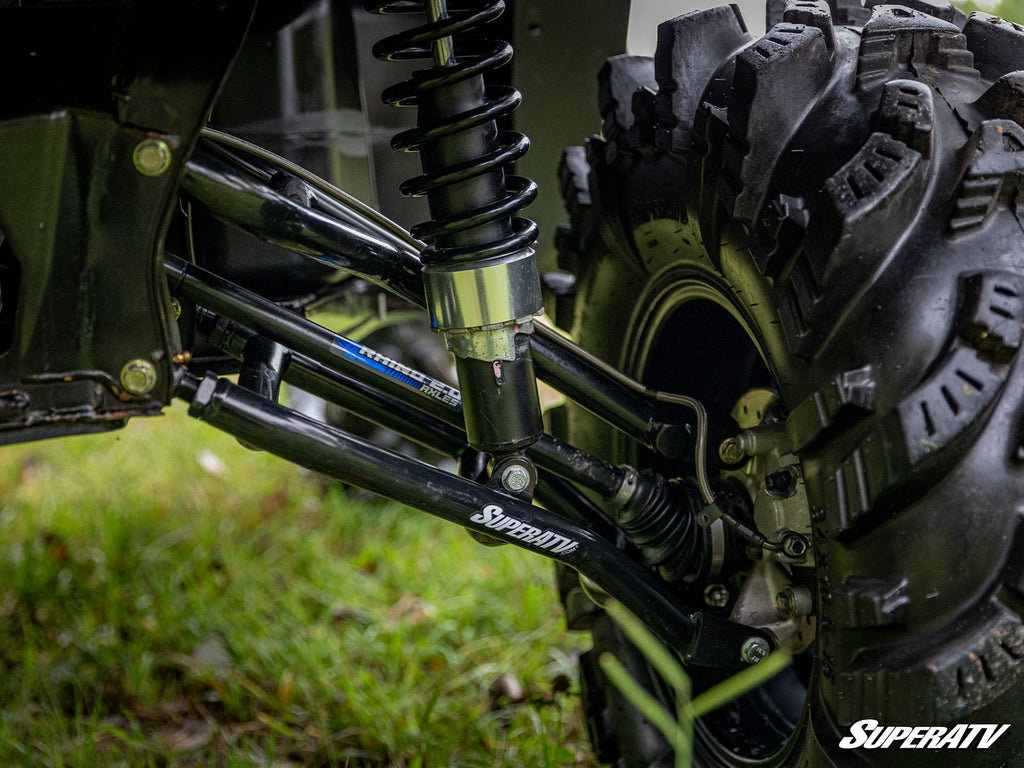

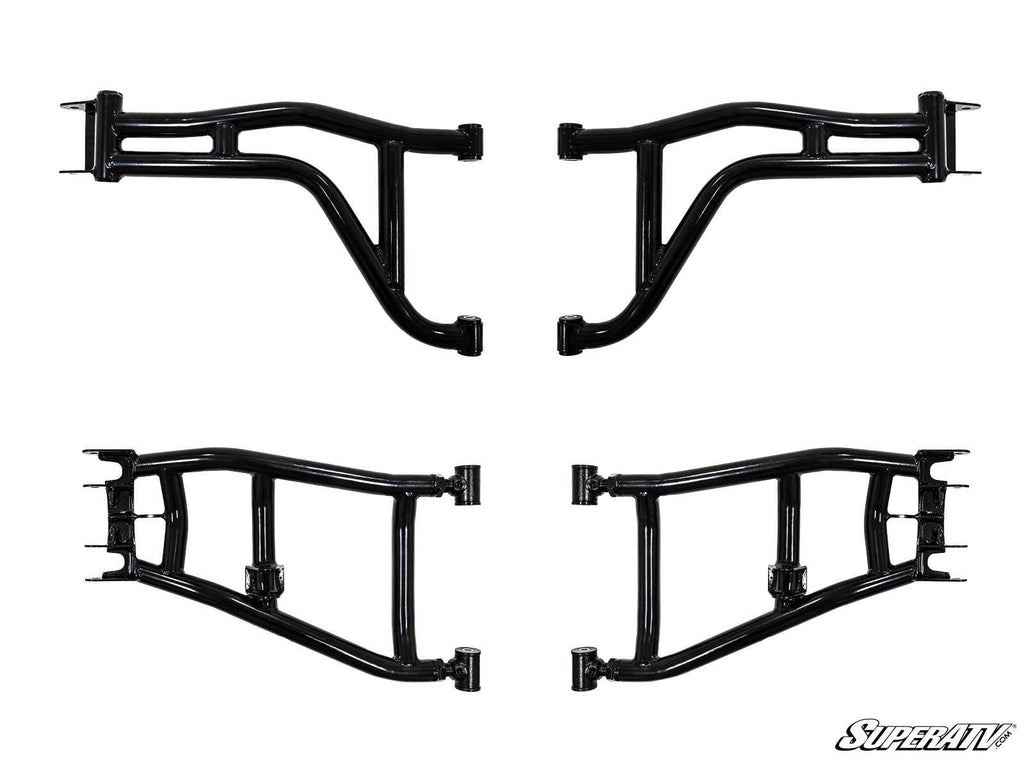

Chromoly A-Arms Take It Over the Top

We can’t say it’s the ultimate lift kit if we can’t back it up. We use chromoly from end to end with these A-arms. That means pivot blocks, A-arms, and ball joints. The 1.25” diameter tubing takes it to the next level. Push your Defender HD9 to the limit knowing it can handle whatever you throw at it.

Maintains the Best Feel

Your stock suspension keeps the feel of your machine smooth and we want to keep that intact. Our shocks and brackets are angled flawlessly, so you don’t have to worry about much changing. Plus, your turning radius won’t change drastically—so you’ll continue riding comfortably ride after ride.

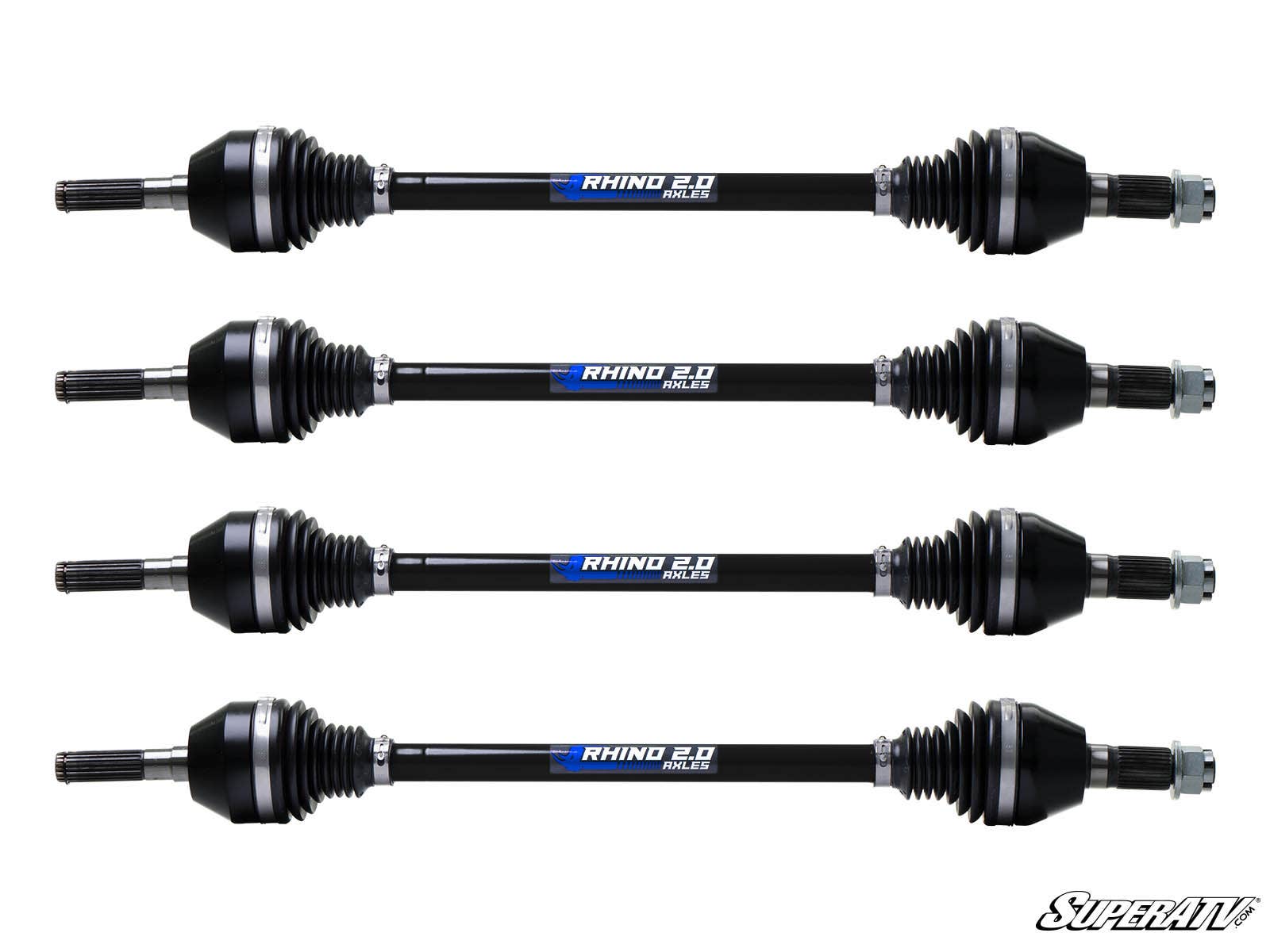

Rhino 2.0 Axles for the Win

Did you really think we weren’t going to give you the best axles on the market when creating the ultimate lift kit? We use hardened 4340 chromoly steel with maximized CV joints for our Rhino 2.0 Axles. That’s twice as strong as stock. They can handle 40° suspension angles without overheating. The best part is you don’t have to worry about breaking them in because they’re precision made. To back them up, they come with an 18-month warranty.

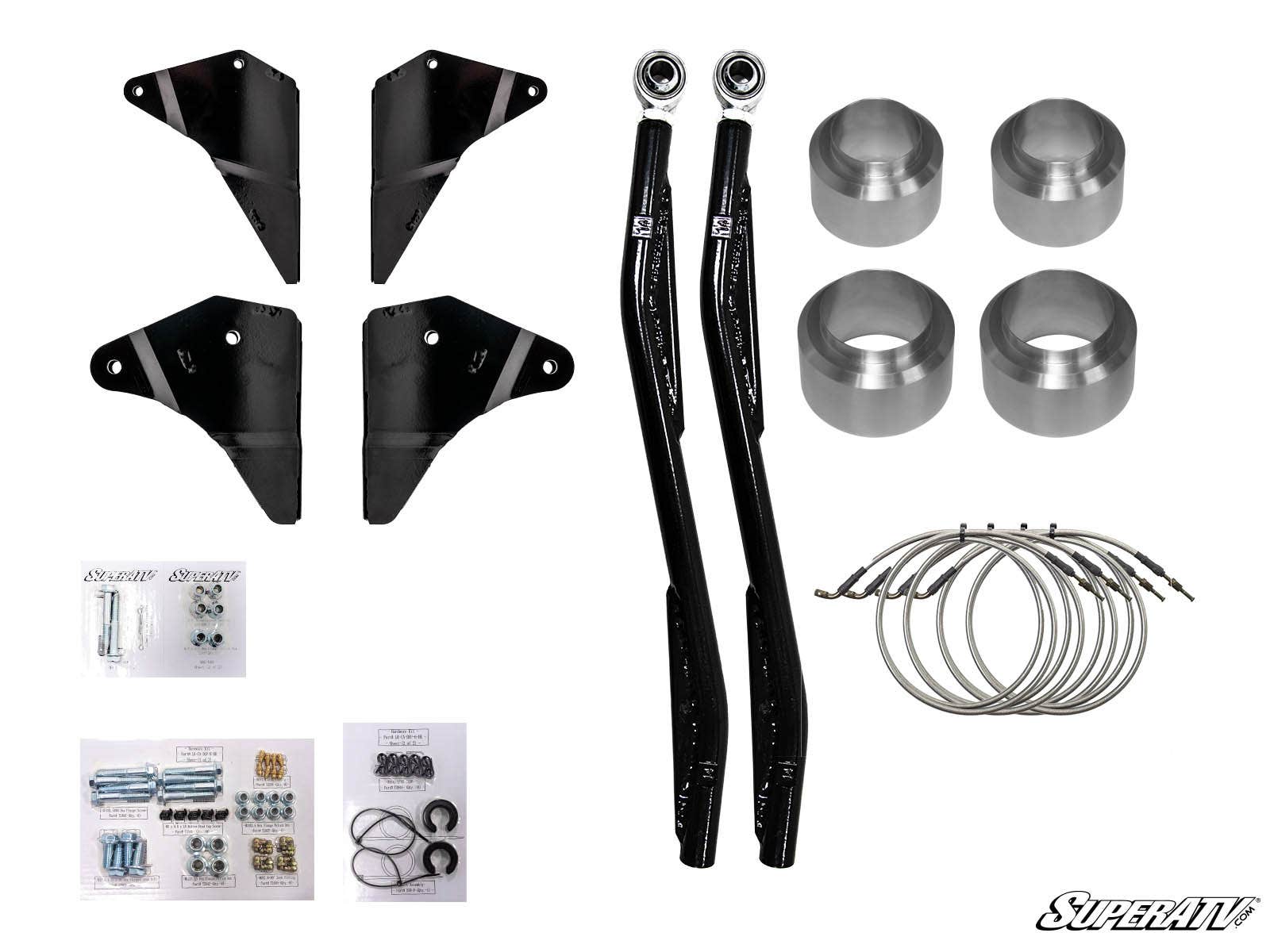

KIT INCLUDES Front and rear lift brackets

Front and rear spring spacers

Front and rear A-arms

4 Rhino 2.0 axles

Heavy duty tie rod kit

Extended brake lines

All hardware and installation instructions

Frequently Asked Questions (FAQ)

How much ground clearance does the Can‑Am Defender 6” lift actually provide? This kit delivers a true 6 inches of suspension lift, bringing total ground clearance to about 17 inches, up from roughly 11 inches stock. That added height lets your Defender clear deep ruts, rocks, and mud that would normally stop a work‑focused machine.

What size tires can I run with this SuperATV lift kit? You can run up to 34” tires, a major jump from the factory 27” setup. Bigger tires mean better obstacle clearance, more traction, and a more aggressive stance without sacrificing drivability.

Will this lift kit fit my specific Can‑Am Defender model? This lift fits a wide range of Defender HD 8, HD 10, Defender MAX, and select Pro models, with year‑specific fitment options. Always confirm your exact model and year using the fitment tab before ordering.

What makes SuperATV’s Defender lift stronger than other big lifts? This is a full chromoly lift kit for the Can‑Am Defender. The A‑arms, pivot blocks, and ball‑joint housings are all chromoly steel, giving unmatched durability for heavy loads, deep mud, and aggressive riding.

Does the kit include upgraded axles? Yes. Every kit includes four Rhino 2.0 axles, built with end‑to‑end 4340 chromoly steel. They’re twice as strong as stock and designed to handle 40°+ CV angles without binding or overheating.

How does the lift affect ride comfort and steering? We engineered the shock angles and brackets to keep the Defender’s comfortable ride intact. The kit also preserves a tight turning radius, so it still feels manageable on trails and job sites despite the added height.

Does this lift increase stability? Yes. The suspension geometry increases total width by about 7 inches for better side‑to‑side stability. That wider stance helps control big tires and keep the Defender planted on uneven terrain.

Is installation difficult and what’s included? Installation is involved but straightforward with detailed instructions. The kit includes front and rear A‑arms, lift brackets, Rhino 2.0 axles, heavy‑duty tie rods, extended brake lines, hardware, and preadjusted pivot blocks for proper camber out of the box.

Does this lift affect sway bars or other stock components? Yes. This 6” lift disables the front and rear sway bars as part of the suspension design. This change is intentional to allow proper suspension travel at the increased height.

Why choose SuperATV’s 6” Defender lift instead of a smaller lift or portals? This kit gives you major tire clearance, extreme strength, and a smooth, controlled ride while keeping factory gearing. It’s ideal for riders who want to transform the Defender into a serious mud and trail machine.

Features

• 17" of ground clearance (up from 11" stock)
• Run up to 34” tires (up from 27” stock)
• Preadjusted pivot blocks give you perfect camber out of the box
• Includes 4 bulletproof Rhino 2.0 axles
• Lifetime Warranty on all A-arms and brackets
• The ONLY chromoly lift kit for the Defender Chromoly ball joint housings Chromoly pivot blocks Chromoly A-arms from end to end!
• Chromoly ball joint housings
• Chromoly pivot blocks
• Chromoly A-arms from end to end!
• True 6” of lift
• 7” wider stance for increased stability (69" wide total)
• Compatible with OEM and SuperATV heavy-duty ball joints
• Powder coated for increased durability
• 100% stronger than stock
• Utilizes the Rhino 2.0 Formula Size: Massive 4mm increase in size! Materials Heat Treatment
• Size: Massive 4mm increase in size!
• Materials
• Heat Treatment
• Constructed of 4340 chromoly steel and finished with a proprietary heat treatment
• Industry leading 18-month warranty
• Field and lab tested for extreme strength and endurance
• CAD drawn for expert precision

Fitment

• Can-Am Defender HD 9 : 2022+
• Can-Am Defender HD 9 Cab : 2022+
• Can-Am Defender HD 9 DPS : 2022+
• Can-Am Defender HD 9 XT : 2022+
• Can-Am Defender MAX HD 9 : 2022+
• Can-Am Defender MAX HD 9 DPS : 2022+
• Can-Am Defender MAX HD 9 XT : 2022+
