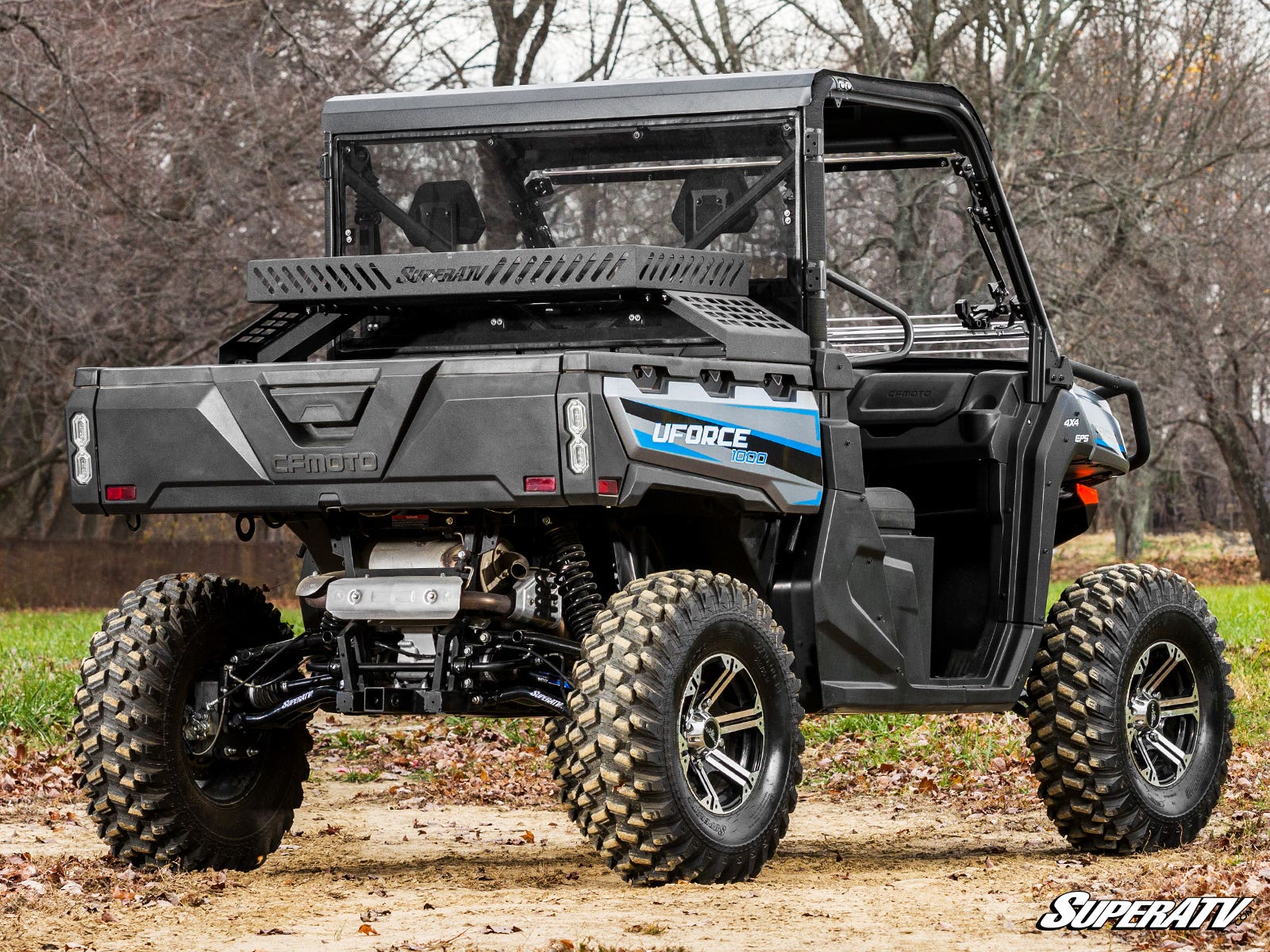

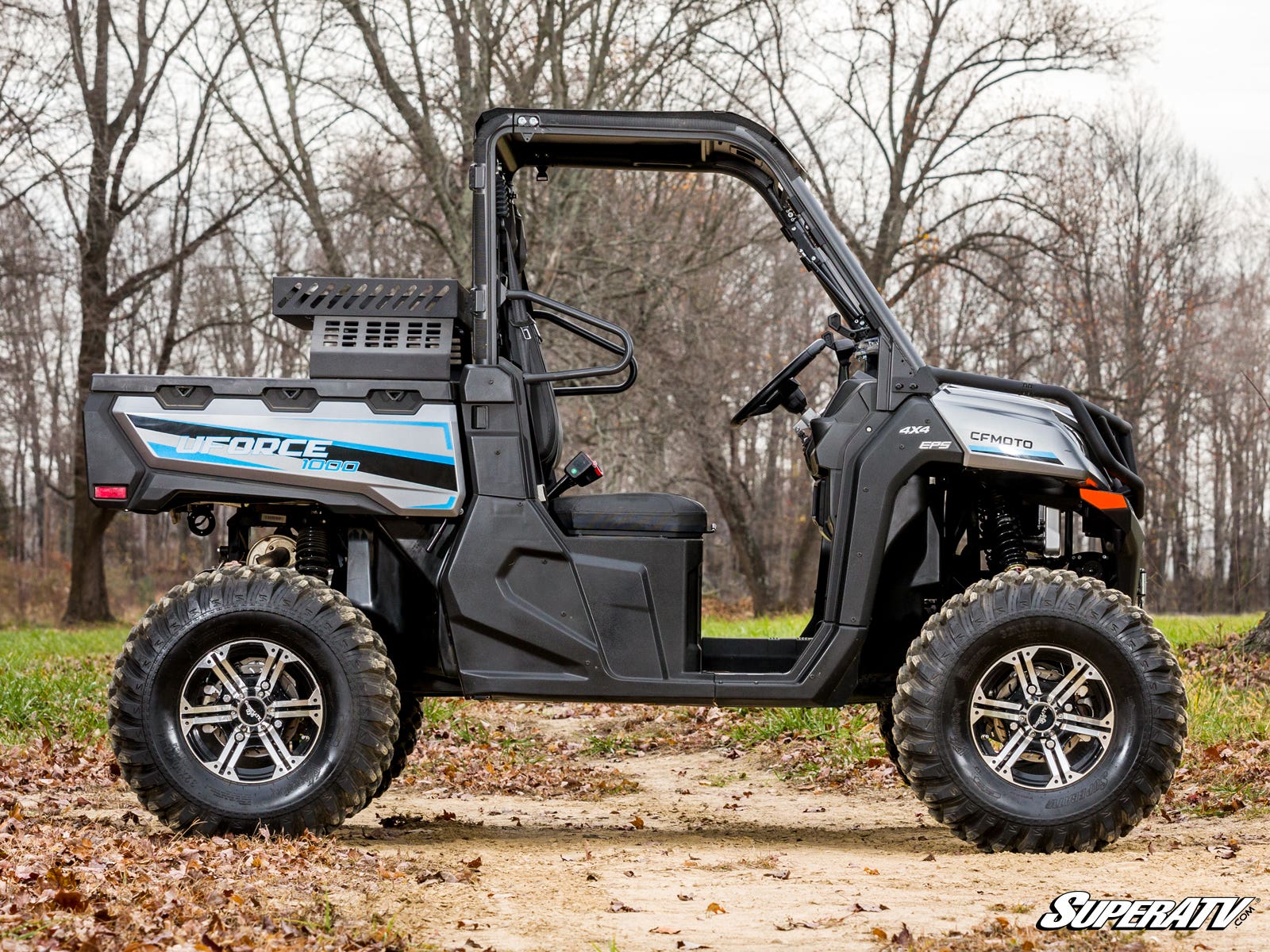

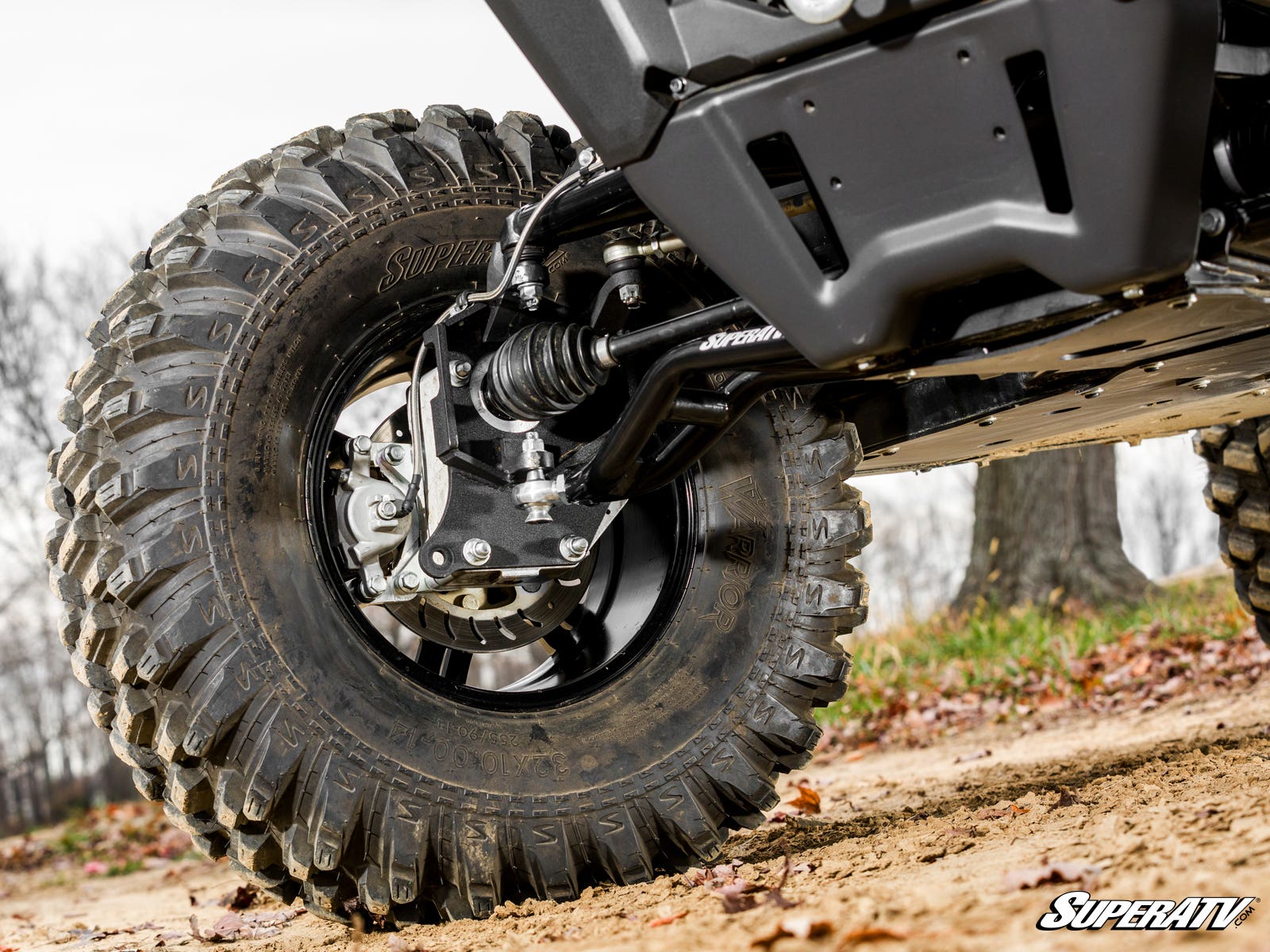

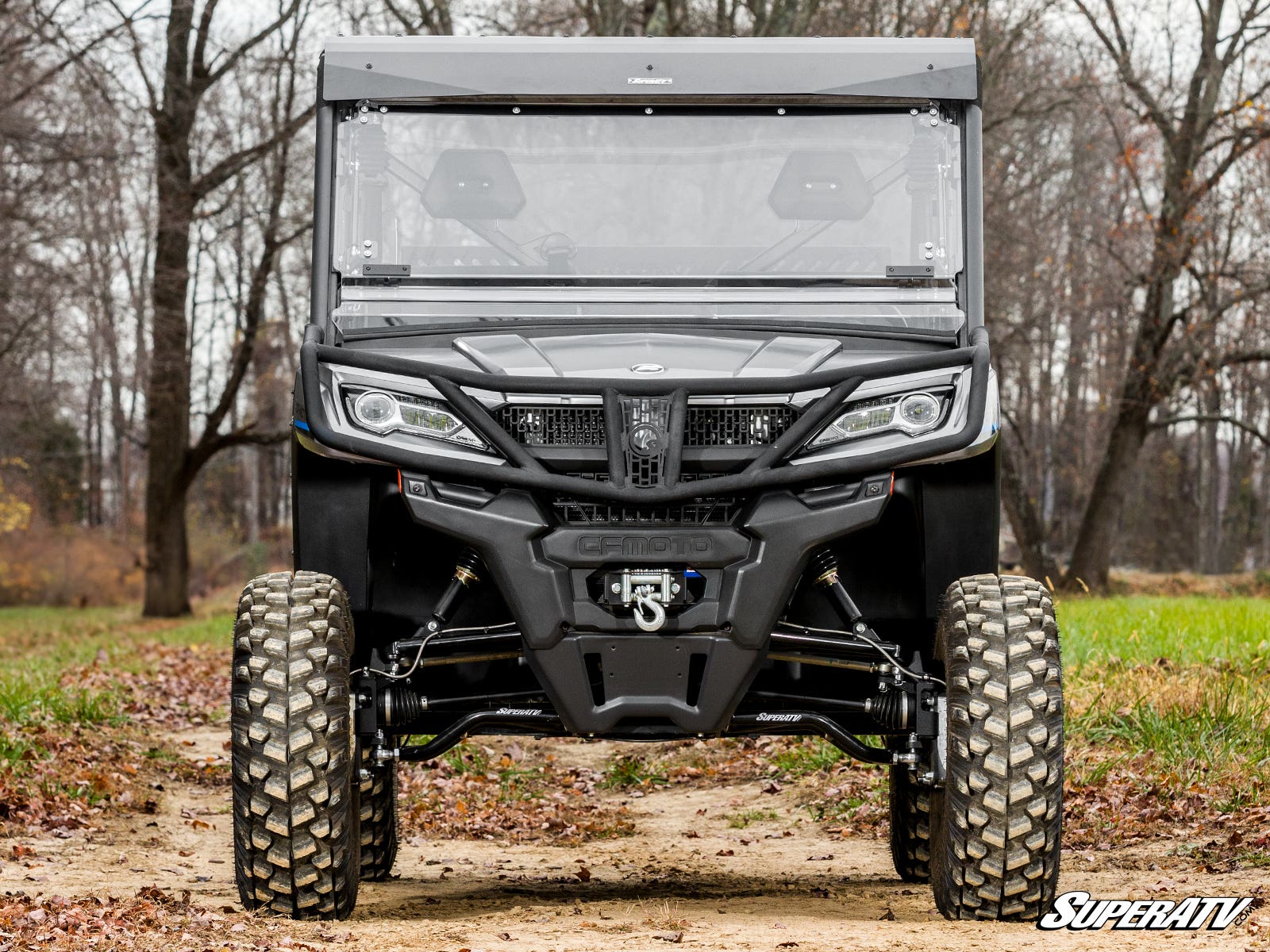

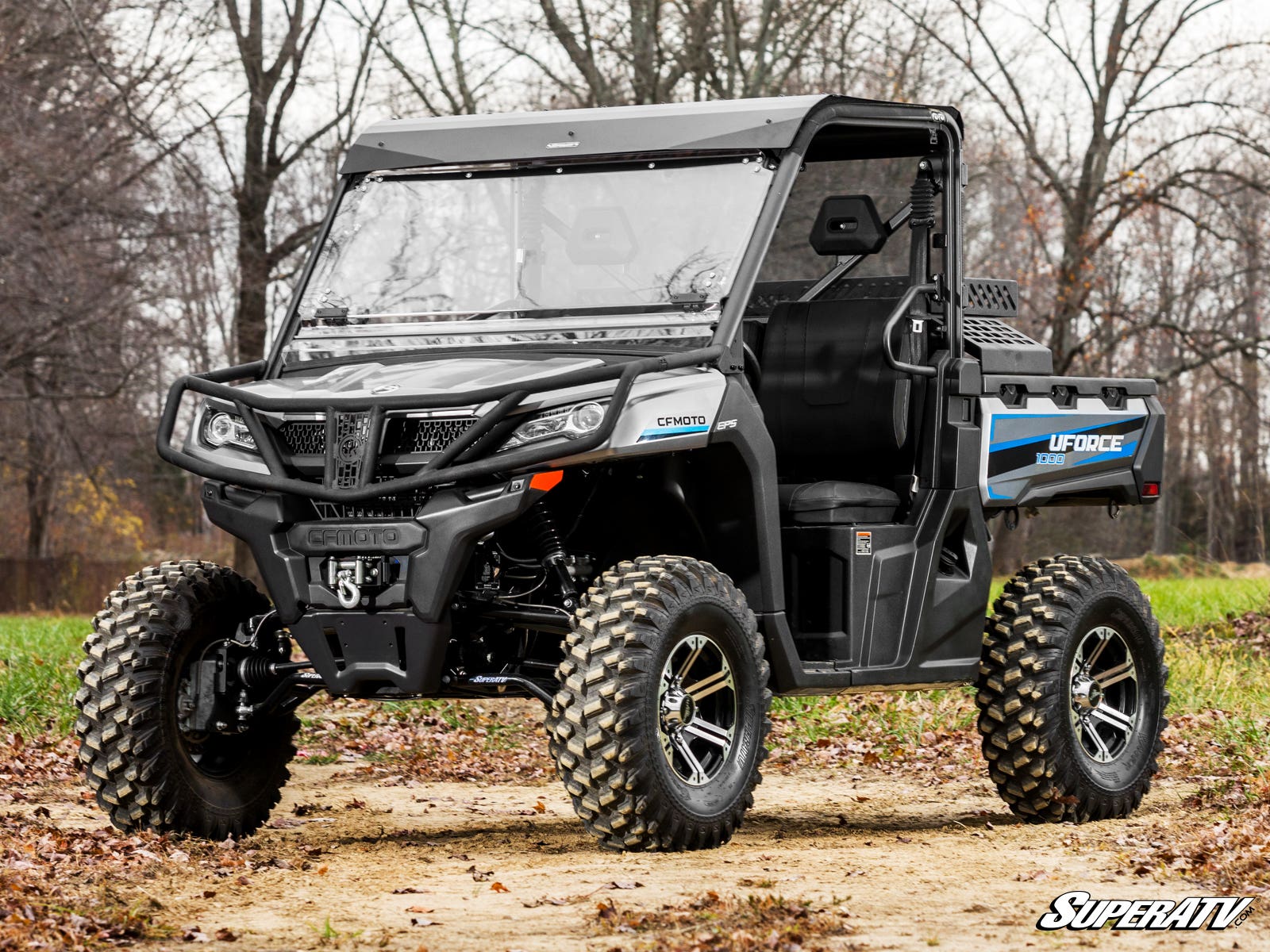

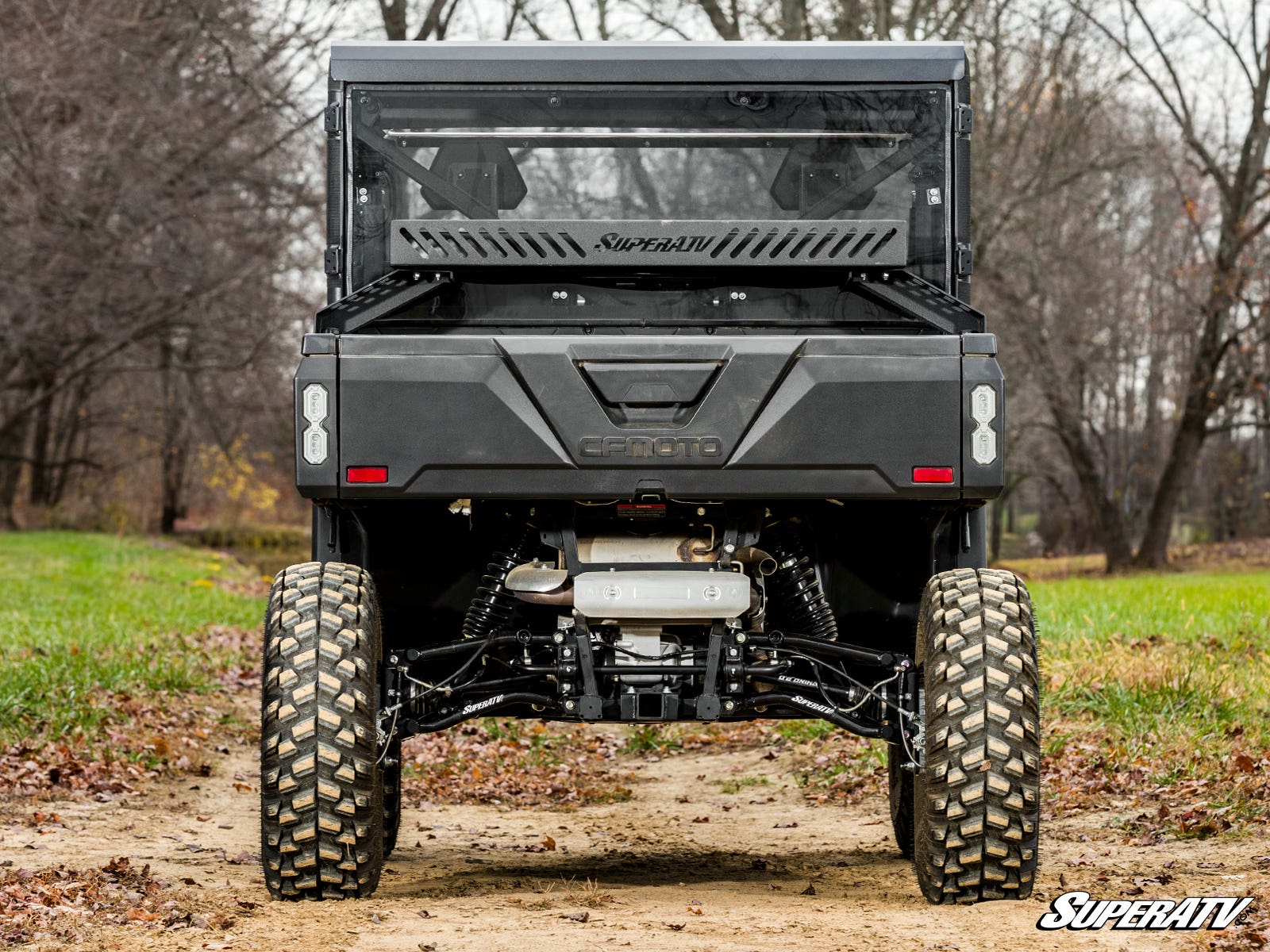

CFMOTO UFORCE 1000 4" PORTAL GEAR LIFT

We mostly trail ride & hill climb in northern Michigan. Put the kit on last week and came up for the holiday. Uforce 1000 XL with 32” tires. The large tires eat up the bumps compared to stock 27” tires. 30% reduction makes it climb like a goat & still comfortable at 50+ mph. Couldn’t be happier. Gav... Read more

Features

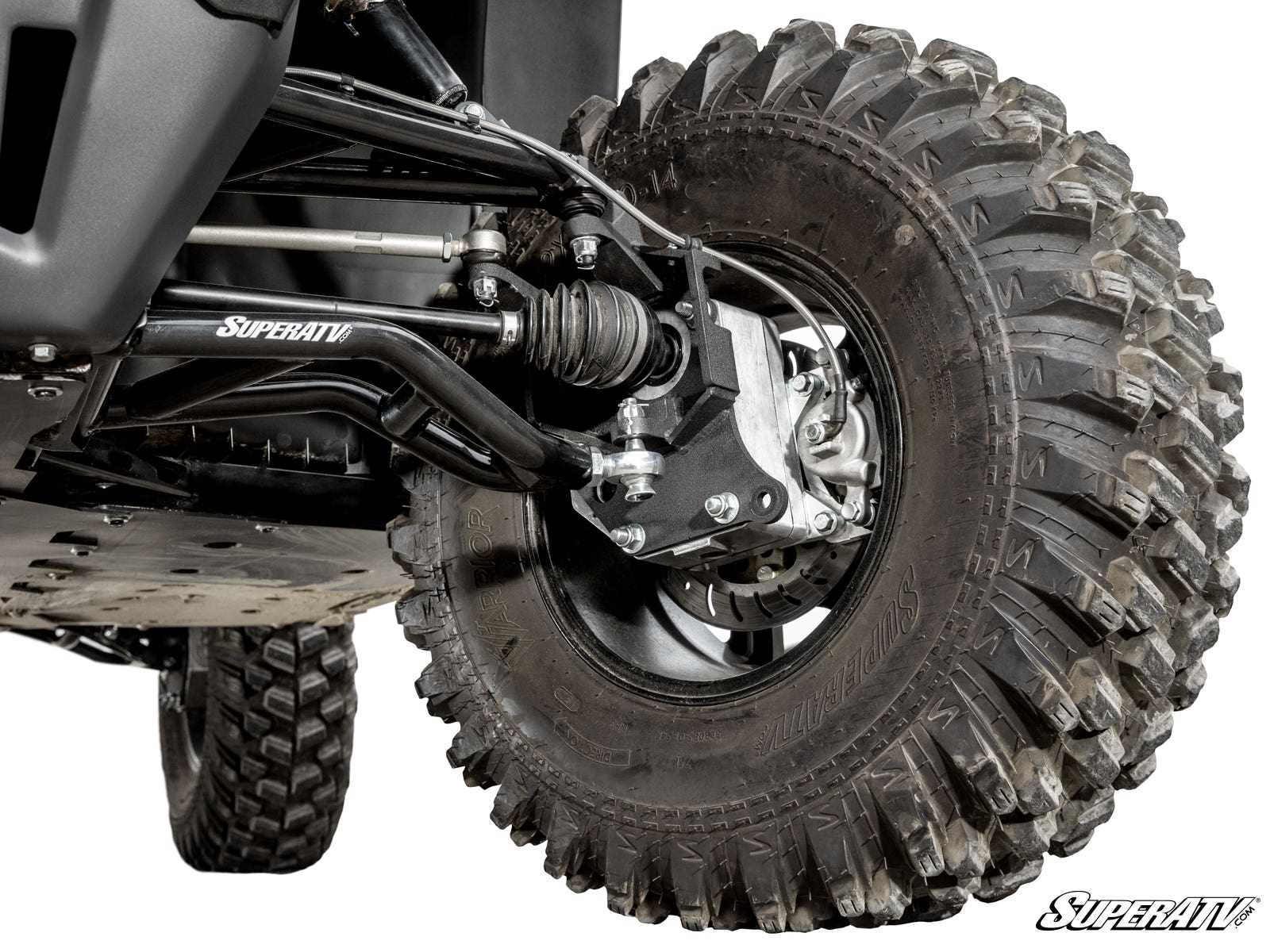

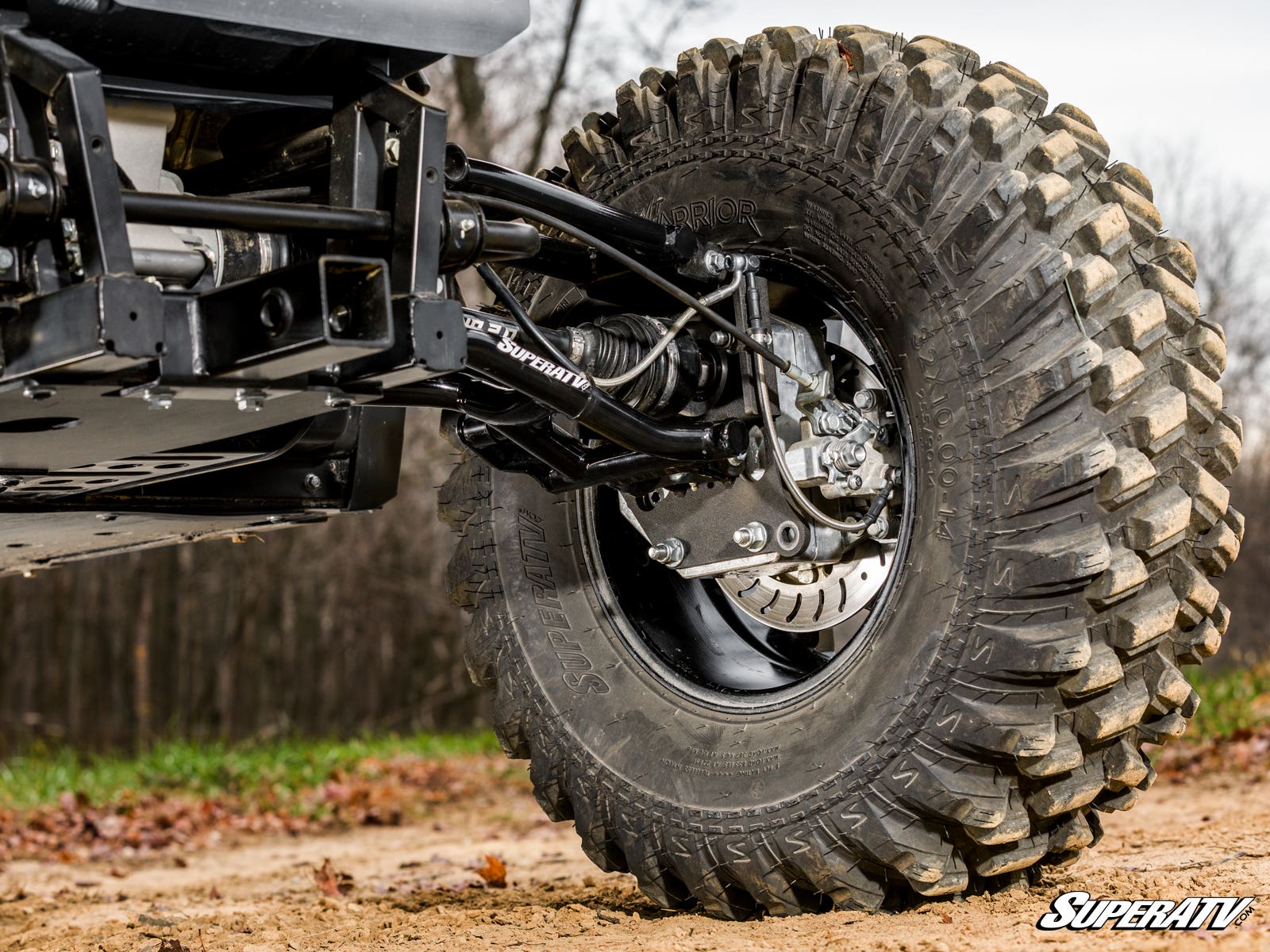

• Gives you a 4” lift and a gear reduction in one package

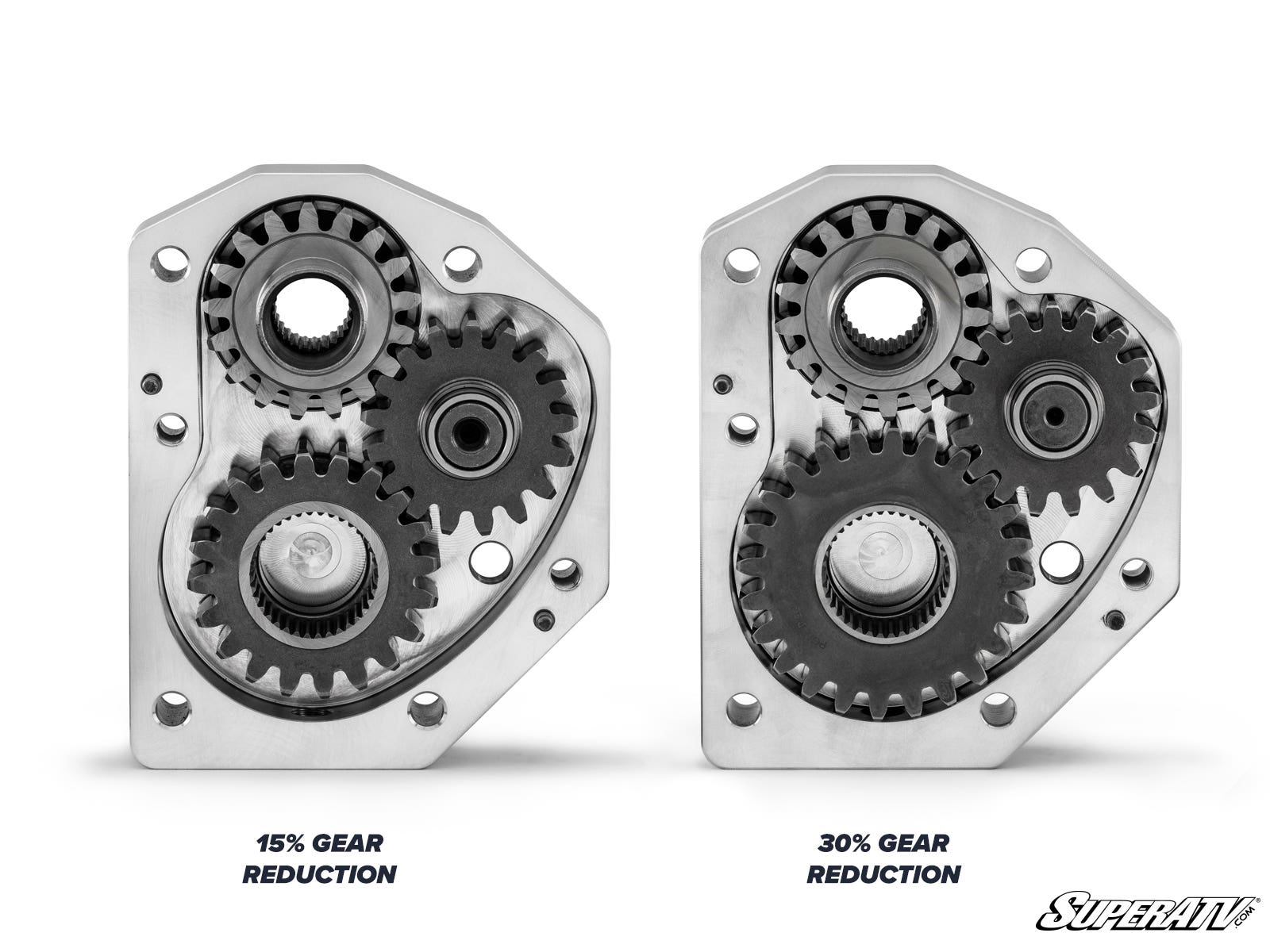

• Choose a 15% or 30% gear reduction
• Maintains OEM suspension angles
• Our housings are reinforced for gear retention and optimized for oil flow
• Advanced steel alloy backing plates are stronger than chromoly
• Enhance with Portal Blood—gear oil formulated for GDP Portals
• There are no gimmicks and no vents because vents do more harm than good—we know because we tested them
• Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
• A sealed input gear and double-lipped output seal
• 100% sealing coverage throughout so you can forget about oil leaks
• Double-angular contact output bearings to prevent premature wear
• Roller idler and drive bearings to maintain perfect gear meshing

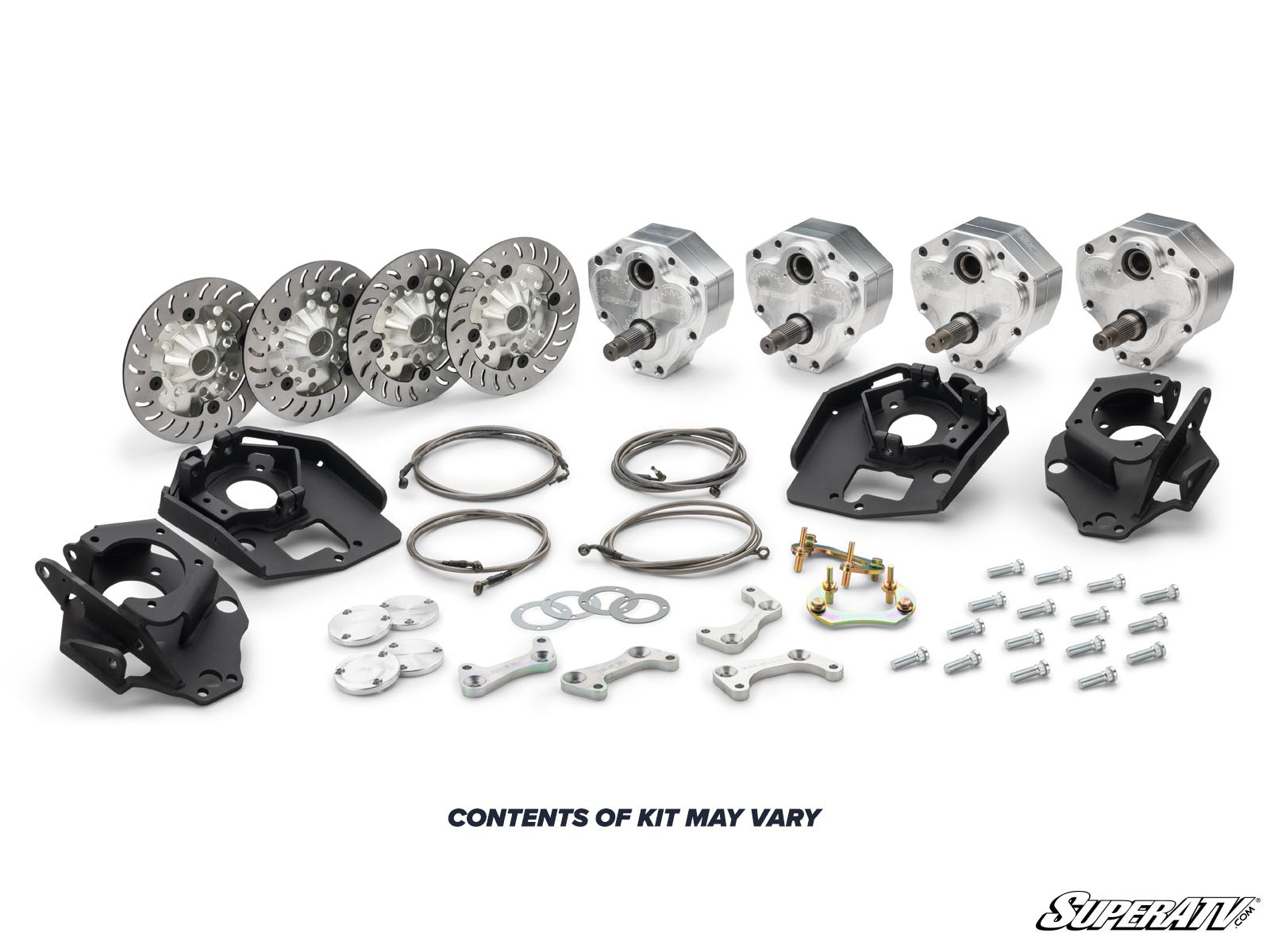

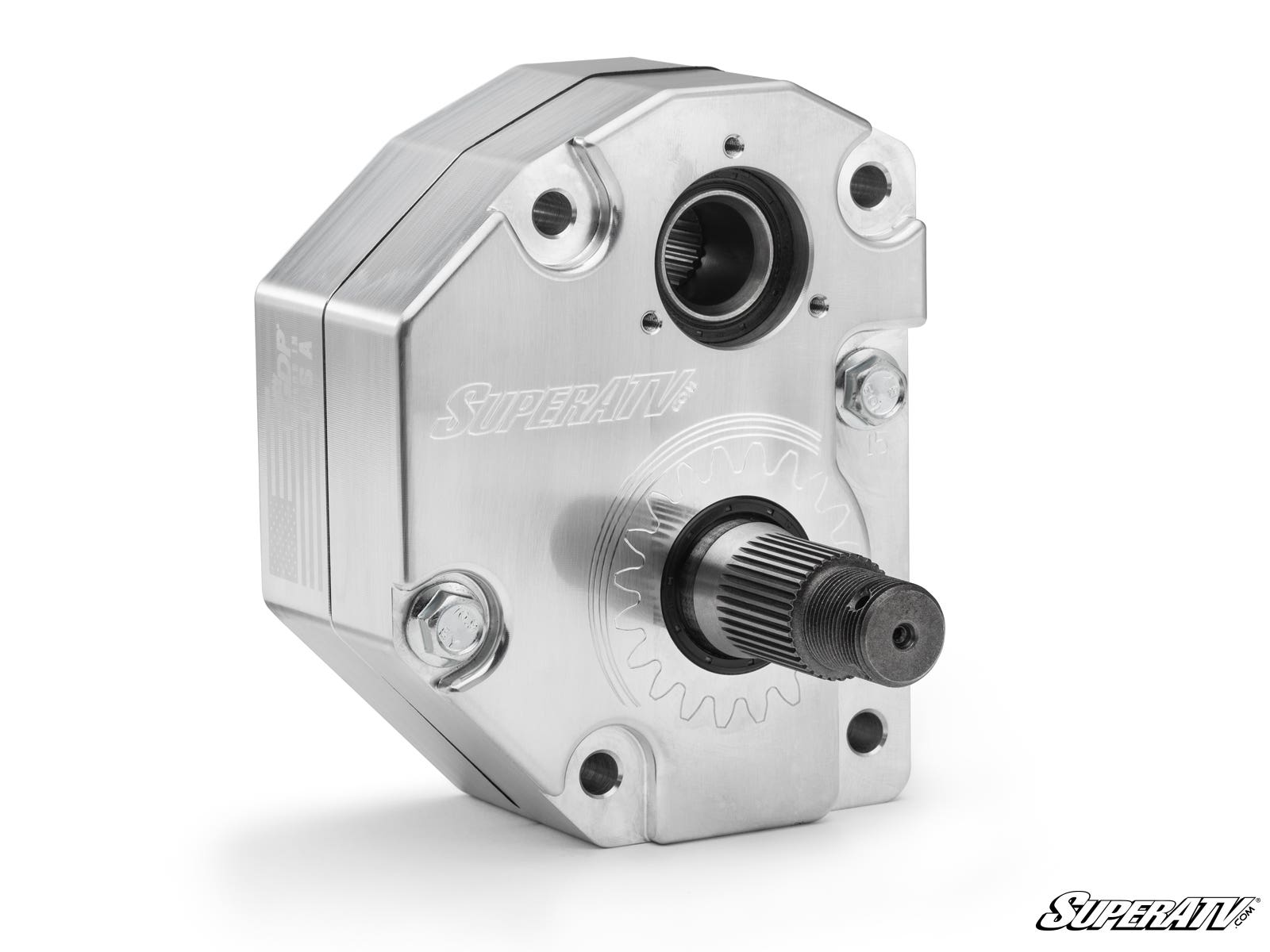

• (4) Assembled portal hub complete with 9310 gears, seals, output shaft, advanced gaskets, and thrust bearings
• (4) Universal hubs and stainless steel slotted rotors with lugs
• (4) Specialized steel alloy backing plates
• (4) Steel caliper mounting plates
• (1) Front caliper adapter
• (4) Shims
• (1) Short left front brake line
• (1) Long right front brake line
• (2) Rear brake line extensions
• (1) Short left front parking brake
• (1) Long right front parking brake
• All required hardware, including recessed castle nut socket

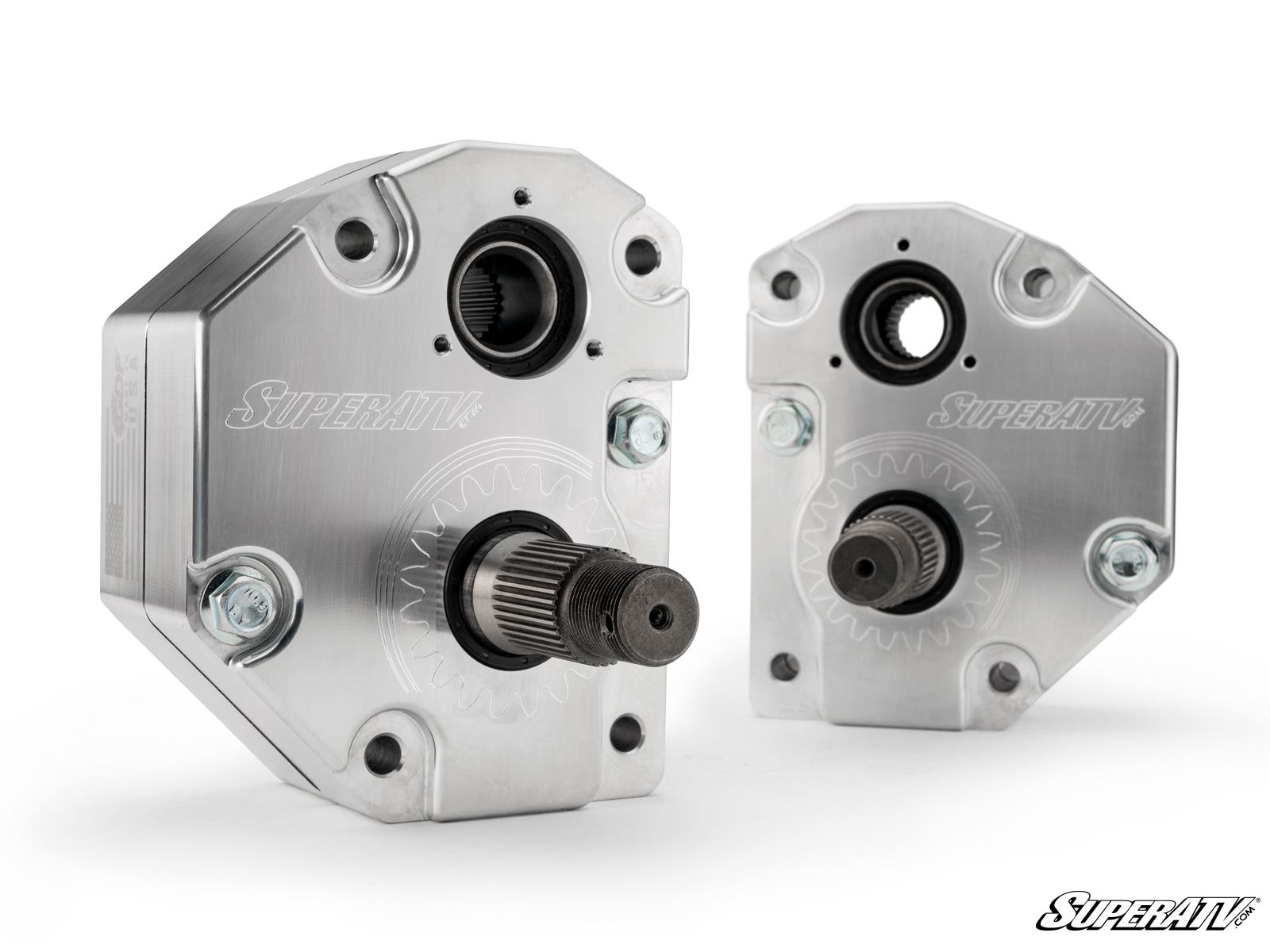

• Available with billet or cast aluminum housing

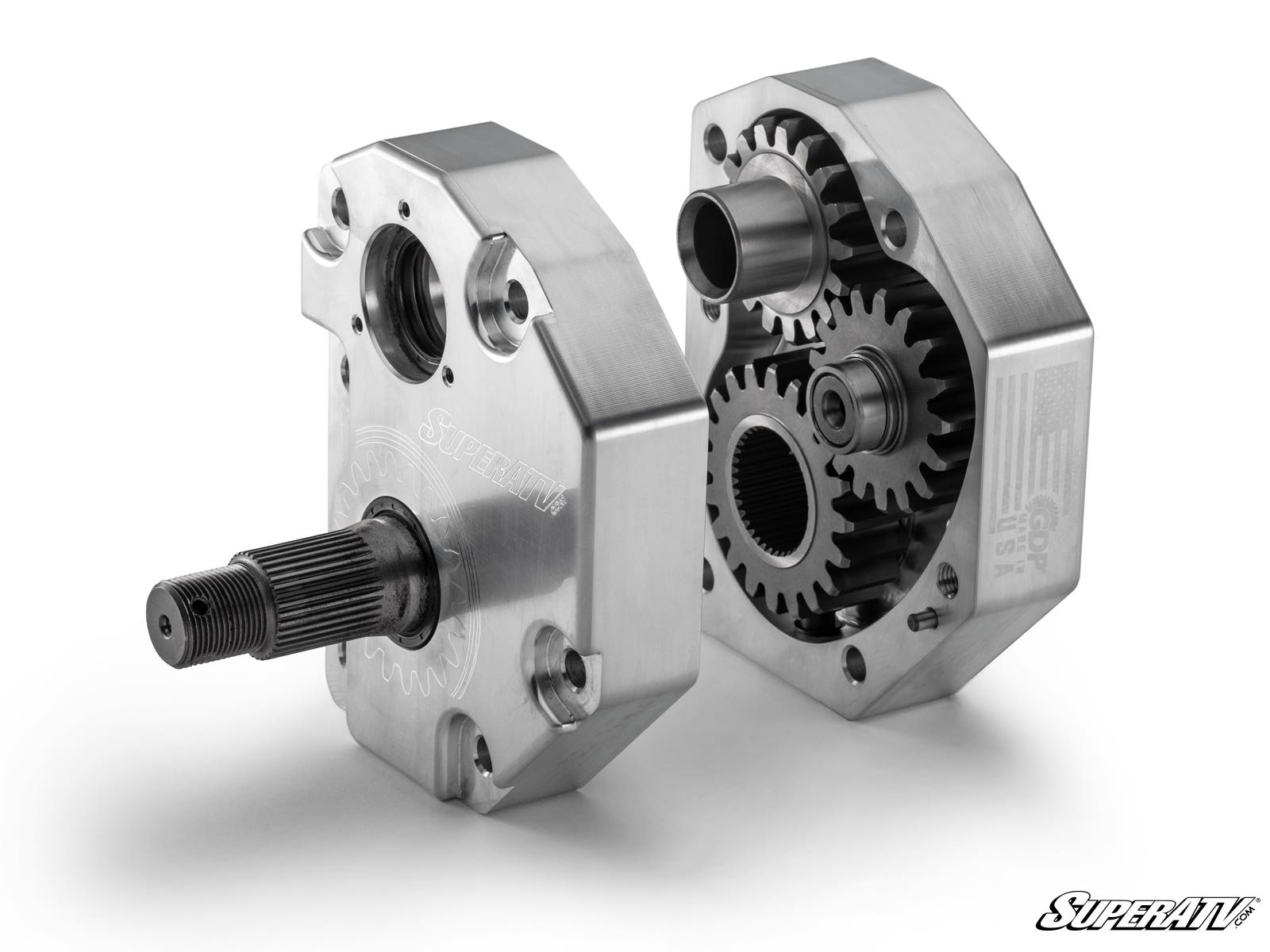

• Cool, quiet, precision-ground gears made from 9310 alloy billet steel
• Increases width by 4” per side (8” total)
• 1.5” diameter 4340 hardened steel drive shaft
• No leak bearings and seals
• Universal hub fits all major bolt patterns
• Comes complete with all hardware, backing plates, brakes lines and instructions
• 14” or larger wheel required
• Wheels cannot exceed 5” backspacing
• Not compatible with dual beadlock wheels
• Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1” wheel spacer

Fitment

• Frame stiffener addition is only compatible with models with build dates prior to March of 2022
• CFMOTO UForce 1000 : 2019+
• CFMOTO UForce 1000 XL : 2022+
