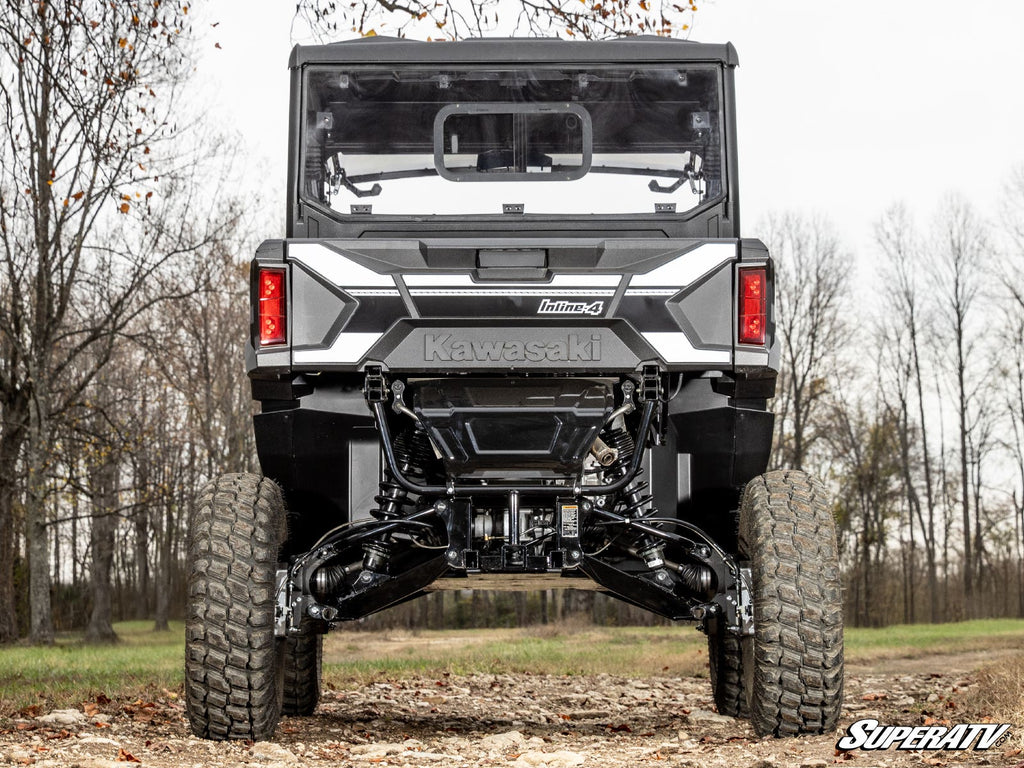

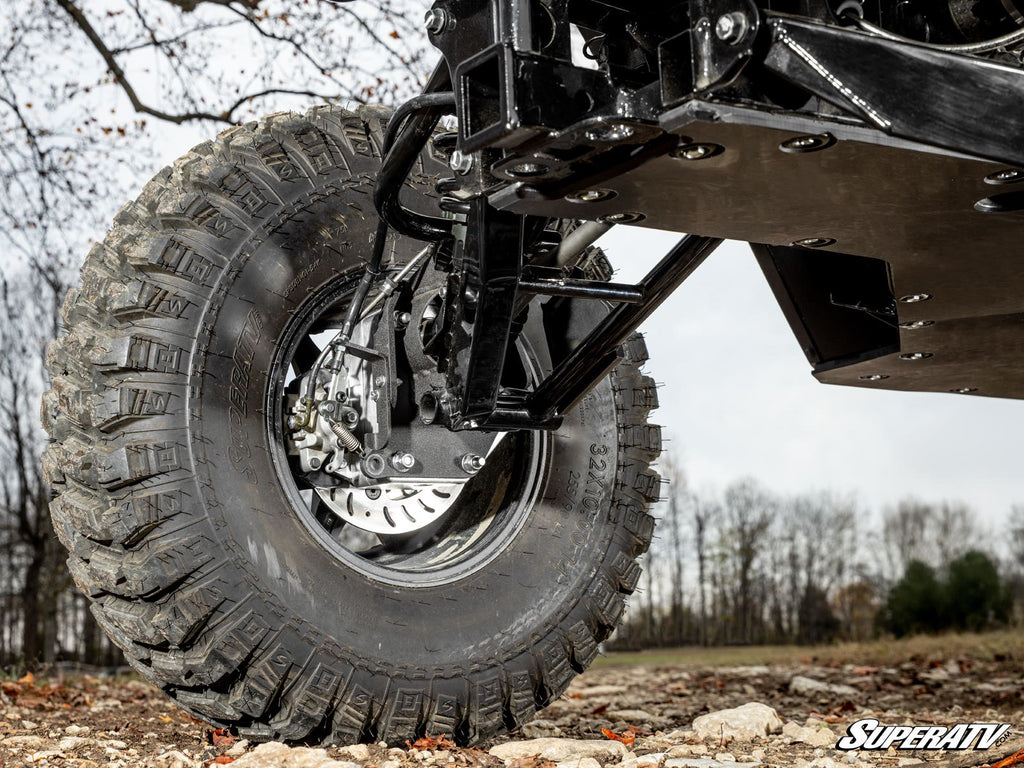

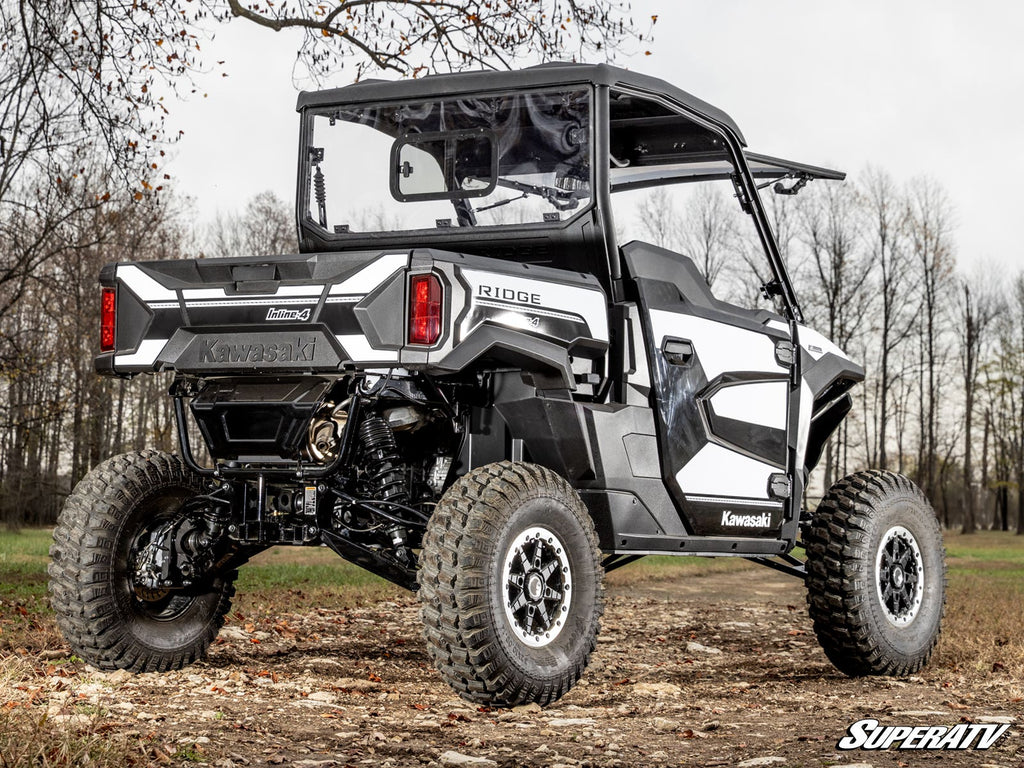

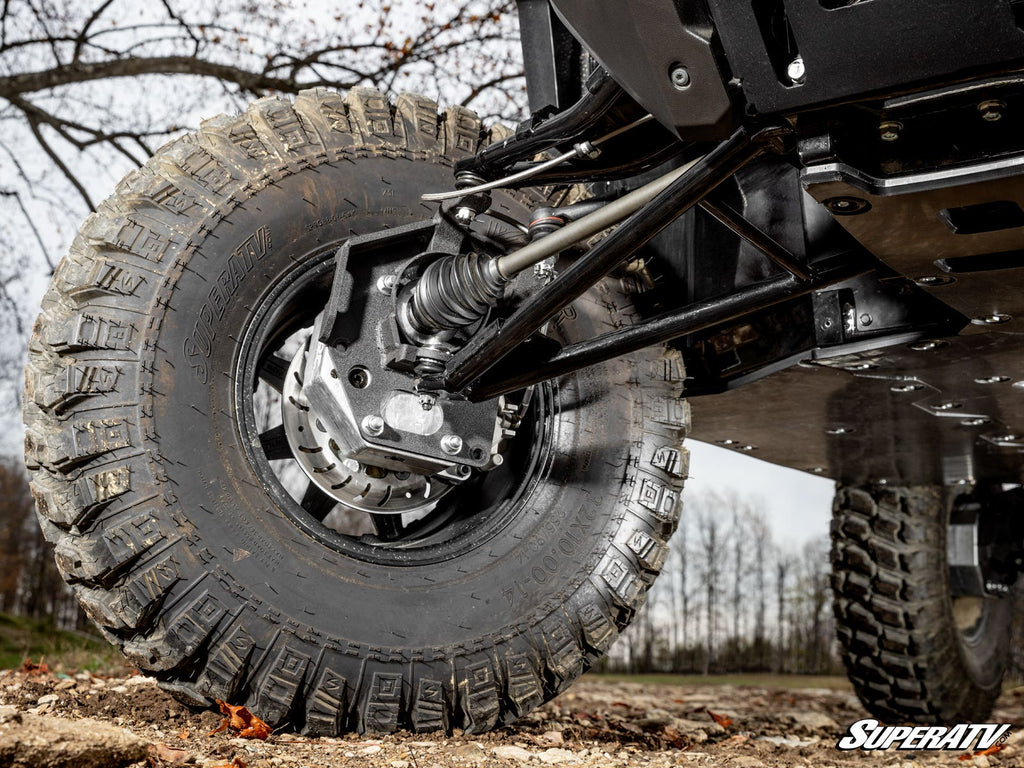

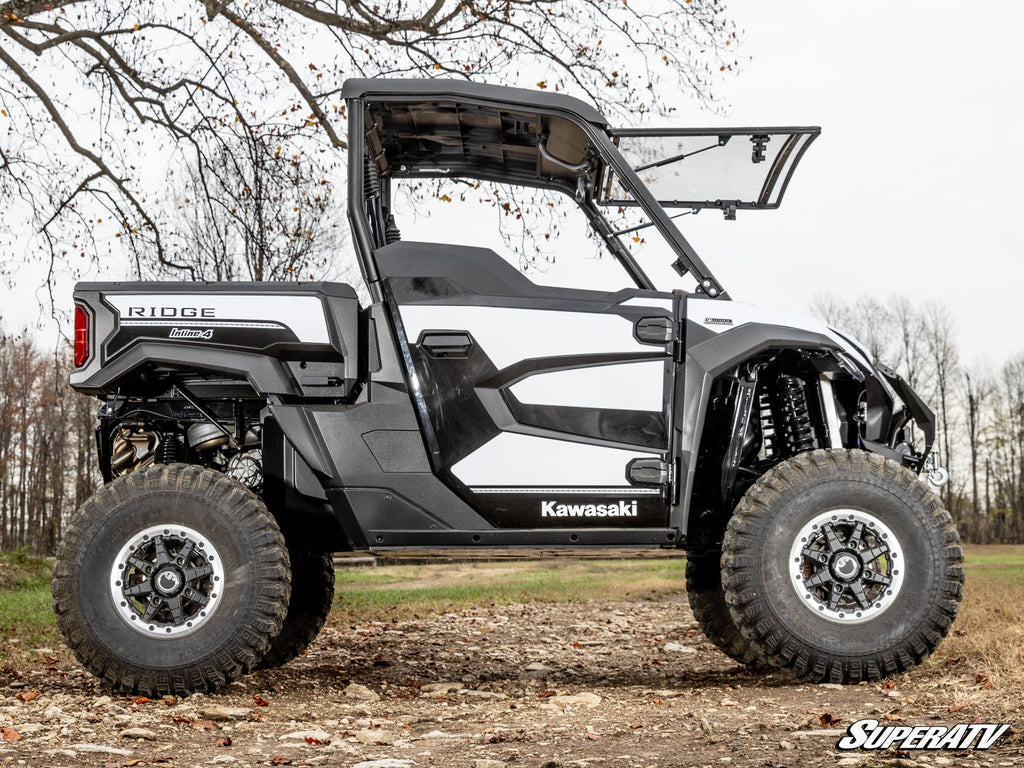

KAWASAKI RIDGE 4" PORTAL GEAR LIFT

Great Fit on the 520. Combined with the super ATV front control arms allowed a 32x10 tire no scrub. Absolutely love them.

Features

• Our housings are reinforced for gear retention and optimized for oil flow
• Advanced steel alloy backing plates are stronger than chromoly
• Enhance with Portal Blood—gear oil formulated for GDP Portals
• There are no gimmicks and no vents because vents do more harm than good—we know because we tested them
• Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
• A sealed input gear and double-lipped output seal
• 100% sealing coverage throughout so you can forget about oil leaks
• Double-angular contact output bearings to prevent premature wear
• Roller idler and drive bearings to maintain perfect gear meshing
• (4) Assembled portal hub boxes complete w/ 9310 gears, seals, output shaft, gaskets, and thrust bearings
• (4) Universal hubs and precision-ground stainless steel slotted rotors w/ lugs
• (4) Specialized steel alloy backing plates
• (4) Steel caliper mounting plates
• (4) Shims
• (8) A-arm bushings
• (4) Steel sleeves
• (2) Parking brake brackets
• (2) Drive gear spacers
• Extended brake lines with parking brake and brake cable brackets
• All required hardware including recessed castle nut socket
• Available with billet or cast aluminum housing
• Cool, quiet, precision-ground gears made from 9310 alloy billet steel
• 1.5 in. diameter 4340 hardened steel drive shaft
• Housings use advanced gaskets or O-rings that don’t let anything through
• Universal hub fits all major bolt patterns
• Gear reduction reduces stress on your drivetrain
• Lighter than the competition
• 14” or larger wheel required
• Cannot exceed 5” backspacing
• Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1” wheel spacer
• Not compatible with dual beadlock wheels

Fitment

• Kawasaki Ridge HVAC : 2024+
• Kawasaki Ridge HVAC Camo : 2025+
• Kawasaki Ridge Limited : 2024+
• Kawasaki Ridge Limited HVAC : 2024+
• Kawasaki Ridge Ranch Edition : 2024+
• Kawasaki Ridge XR HVAC : 2024+
• Kawasaki Ridge XR Deluxe HVAC : 2025+
• Kawasaki Ridge Crew HVAC : 2025+
• Kawasaki Ridge Crew HVAC Camo : 2025+
• Kawasaki Ridge Crew XR : 2025+
• Kawasaki Ridge Crew XR HVAC : 2025+
• Kawasaki Ridge Crew XR Limited HVAC : 2025+
