MTX UNI-1 AMPLIFIER AND ROLL CAGE SPEAKER KIT

MTX UNI-1 AMPLIFIER AND ROLL CAGE SPEAKER KIT

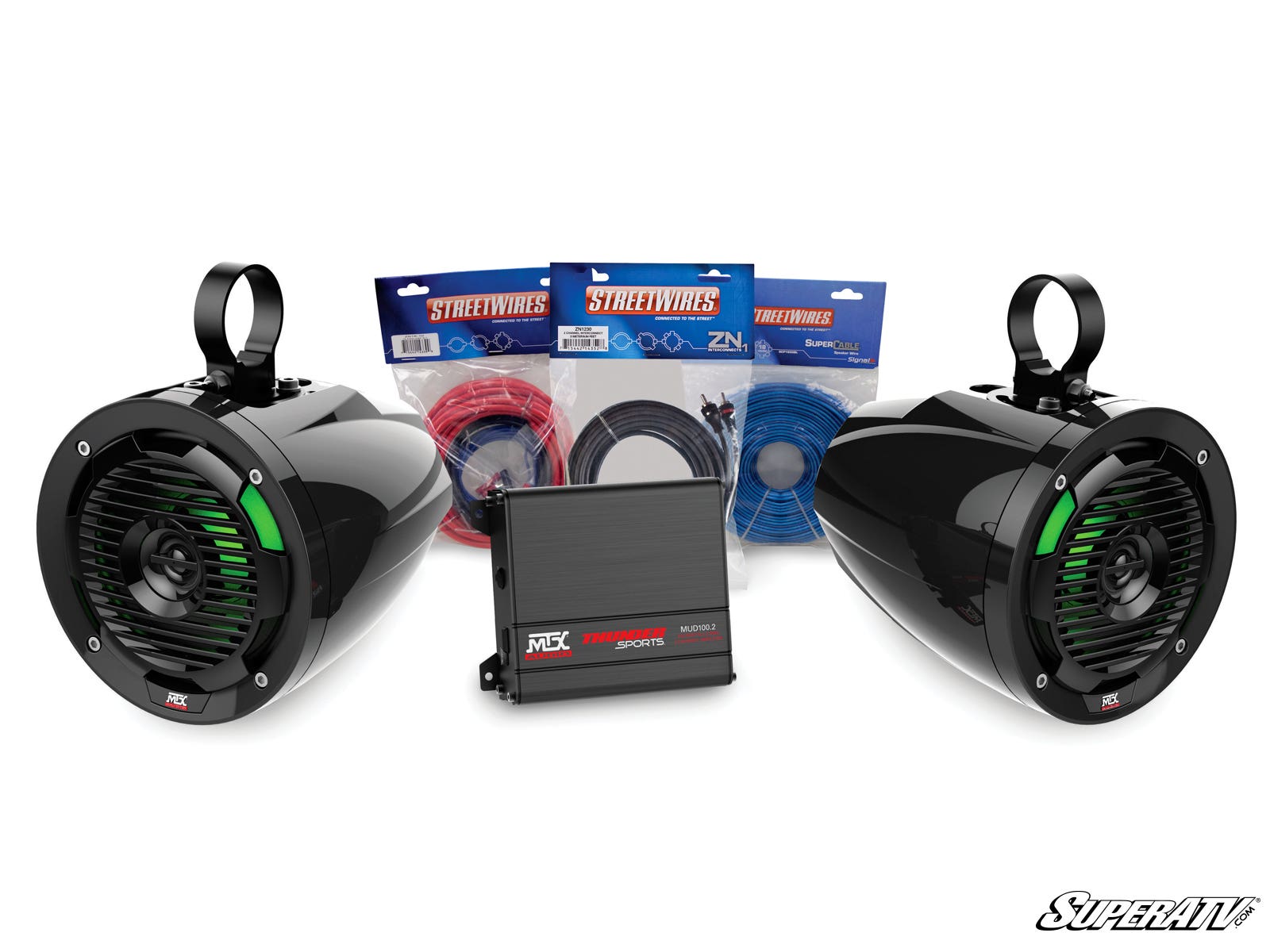

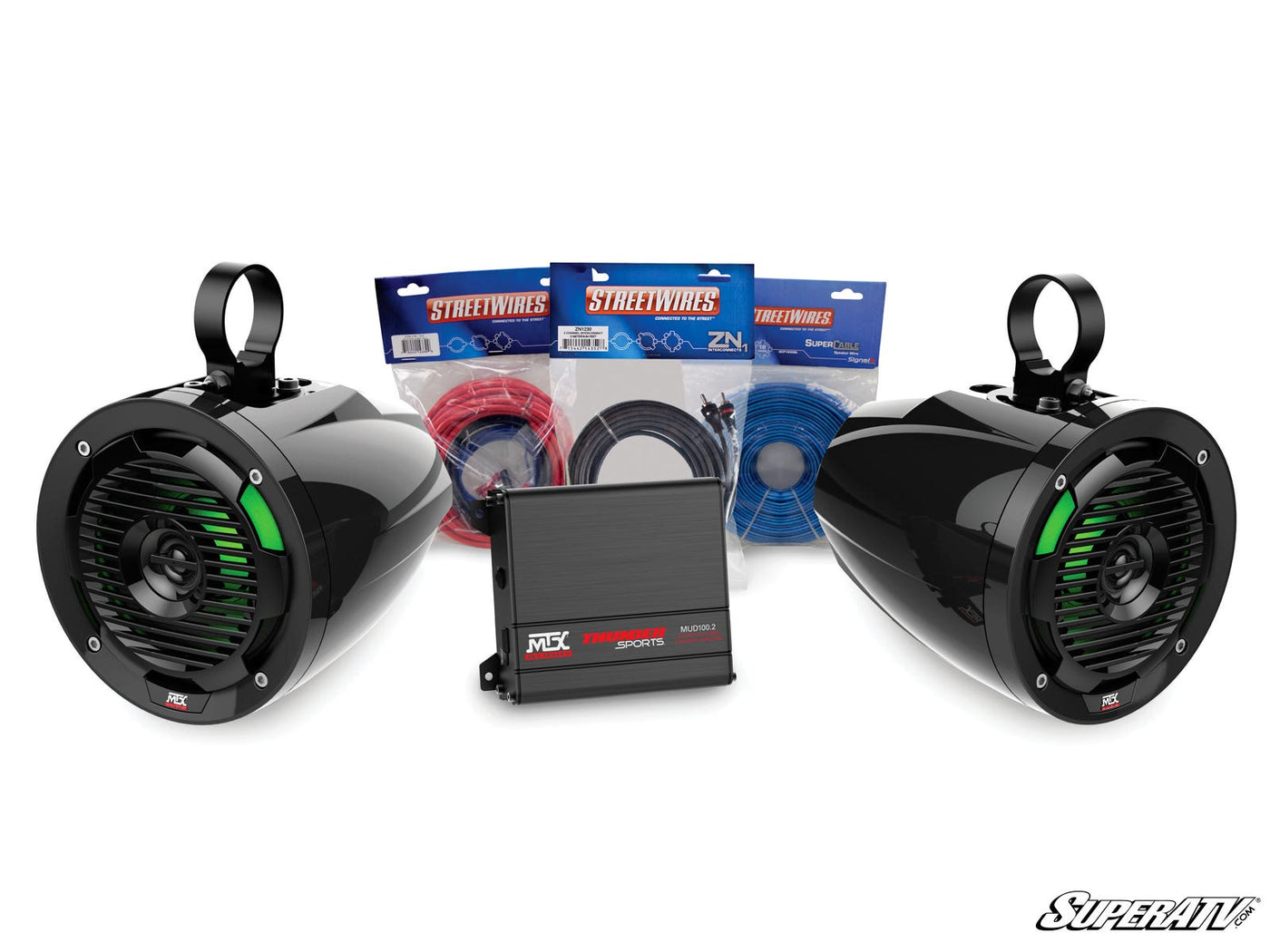

All-in-One Kit for Awesome Sound

Looking for an all-in-one kit to pump your jams out on the trail? We’ve got just what you need: MTX’s UNI-1-ADDON or UNI-1-AUX Amplifier and Roll Cage Speaker Kit. It fits all tubes between 1.75” and 2”, making it nearly universal. This kit comes with an MTX MUD100-2 amplifier, two or four 6.5” speaker pods, and all the wiring you need. This kit is compatible with any source—you can choose between RCA, 3.5 mm headphone jack, or Bluetooth connections. Whether you’re cruising in a Jeep, UTV, or another machine, these speakers will have everybody rocking and rolling with you.

Bluetooth Optional

Take control of your sound with MTX’s AWBTC Bluetooth controller. It pairs automatically with your phone or other bluetooth device, so you can get connected and start streaming your music in seconds. The backlit buttons make it easy to see, and the rotary knob gives you quick, precise control. Stream music wirelessly from your phone or plug in through the auxiliary input for a direct connection—either way, your ride just got way better.

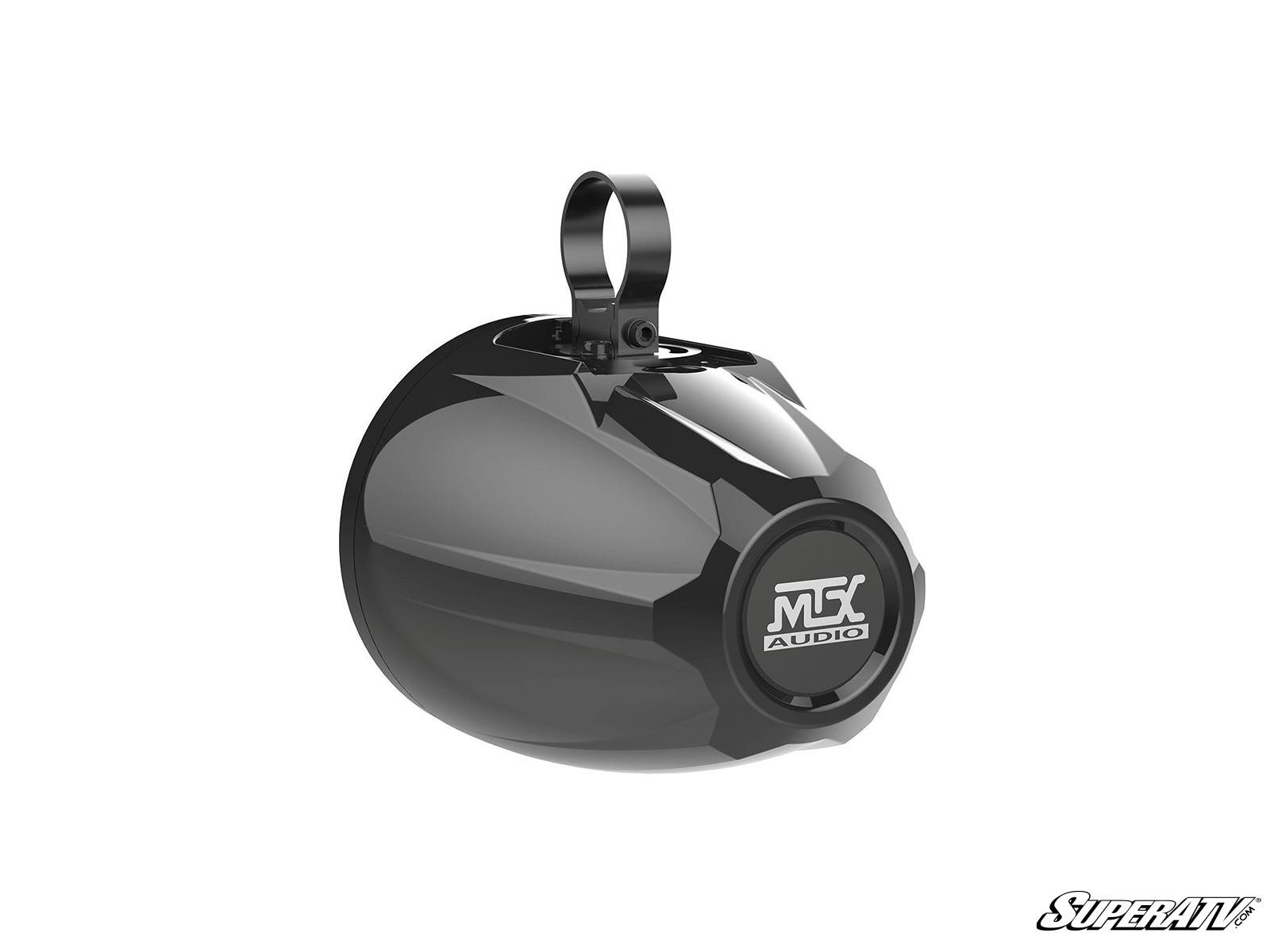

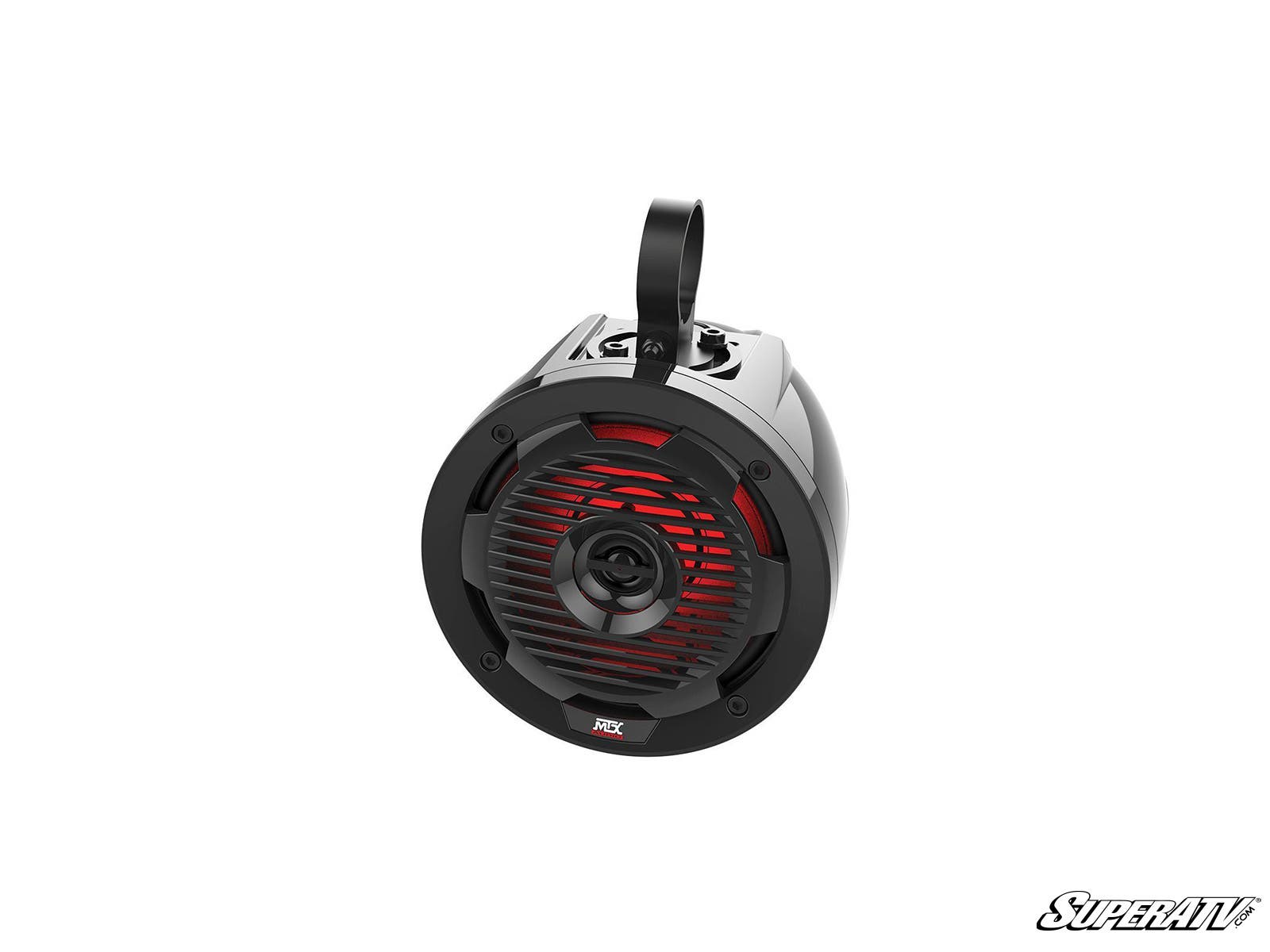

Speakers to Fit Your Cage

With this kit, you get two or four 6.5” weather-resistant speaker pods. They’re impact resistant and have integrated RGB lighting for maximum head-turning potential. Thanks to adjustable clamps that mount easily to 1.75”, 1.85”, or 2” bars, you’ll be ready to set the ride’s soundtrack without working too hard to install it.

Speaker Specs

Speaker Size 6.5", 2-Way

Sensitivity 86dB

Impedance 86dB

Frequency Response 70 Hz-20k Hz

Dimensions 9.34" x 7.09" x 8.76"

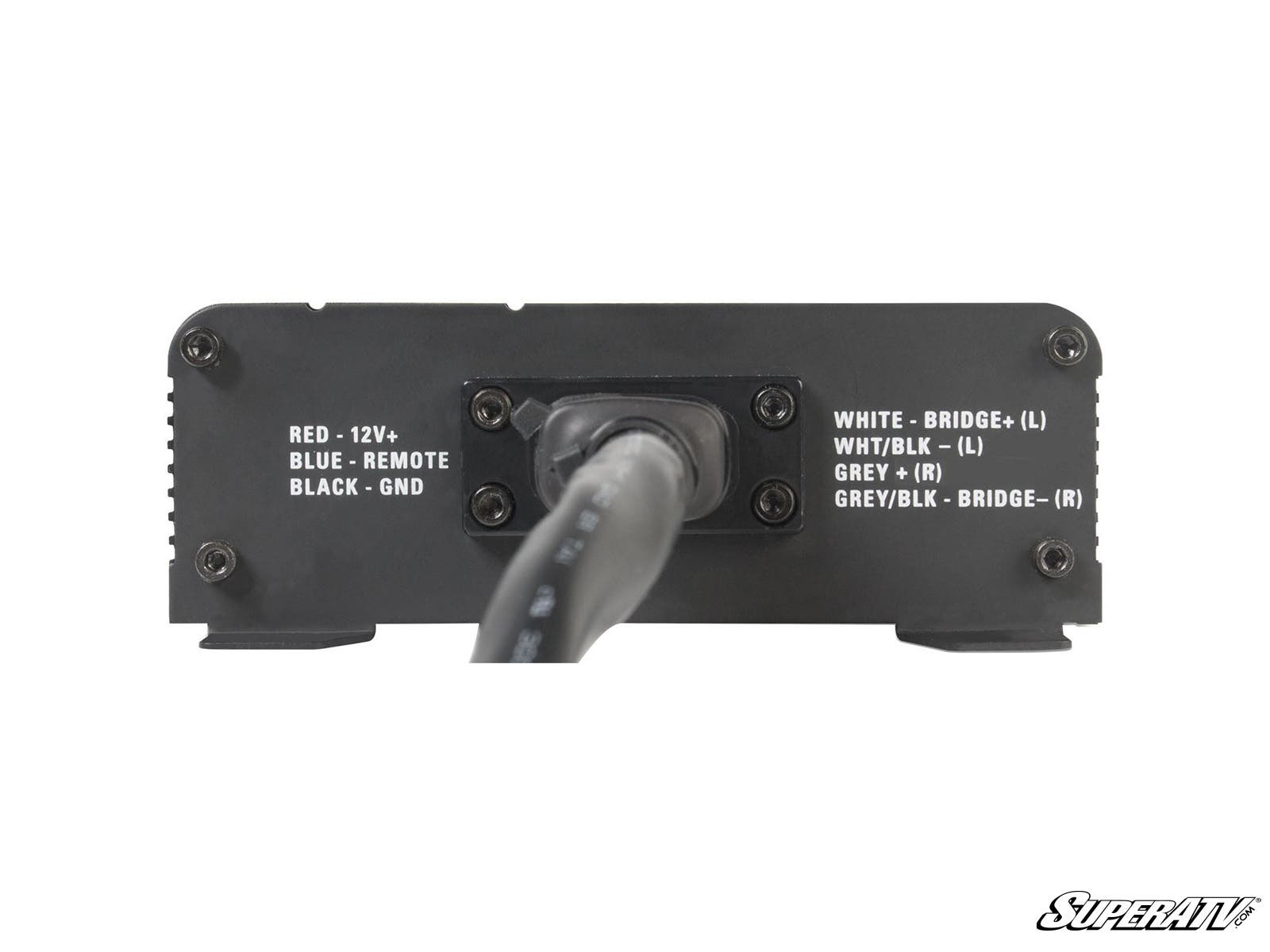

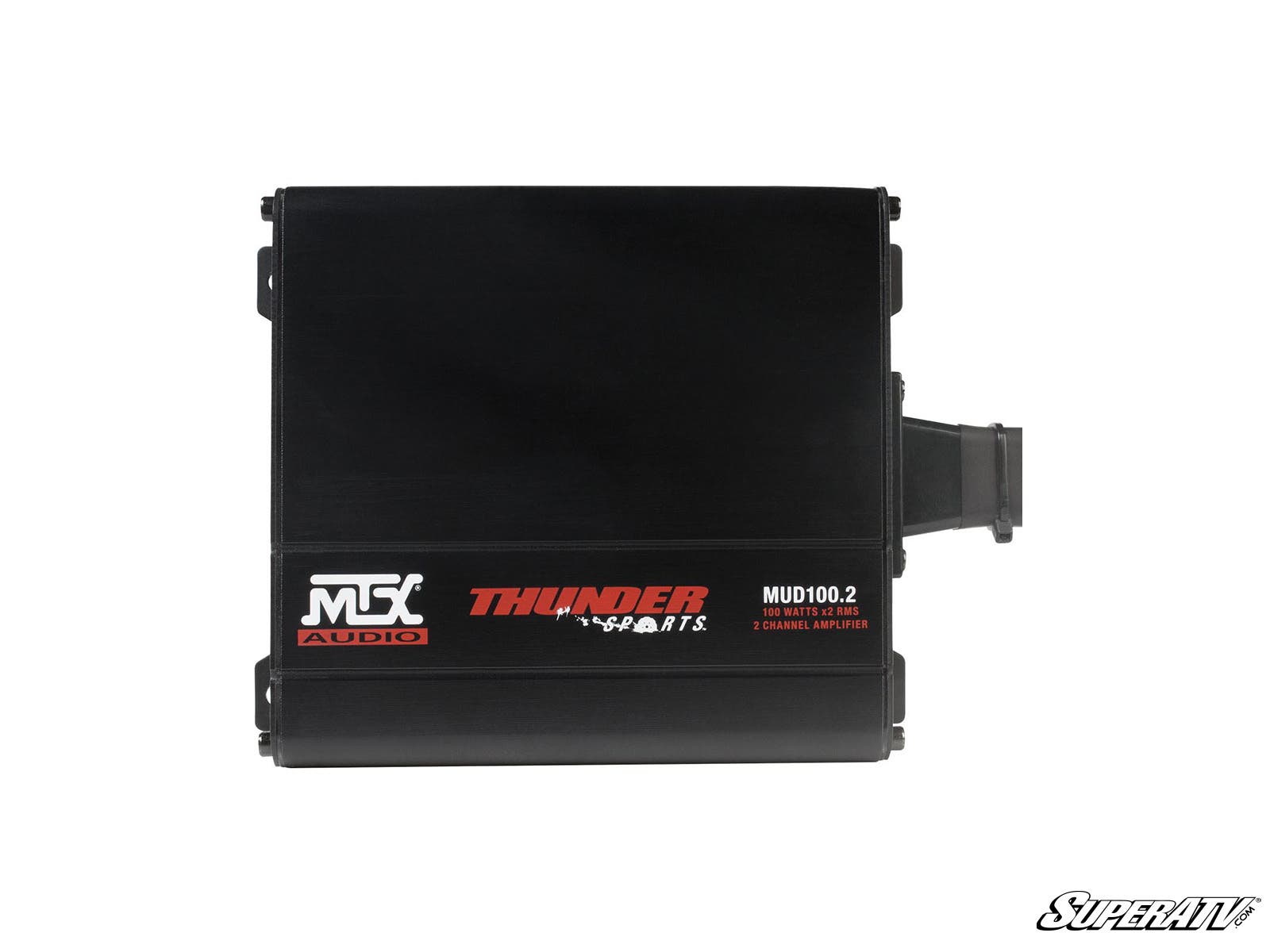

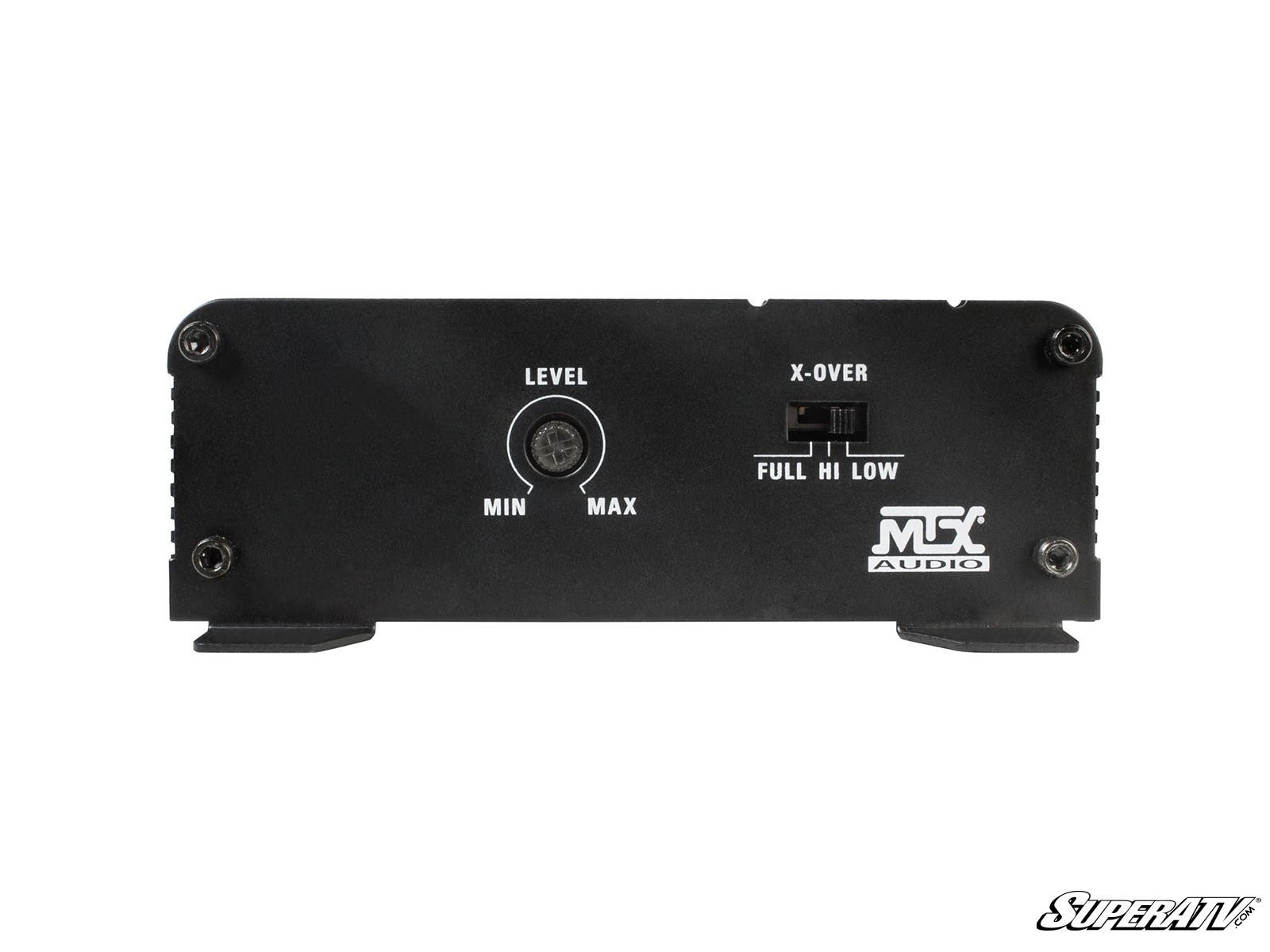

Small But Mighty Amplifier

This kit comes with MTX’s MUD100-2 amplifier. It’s small, but it packs a major punch in the sound department! That small size makes it more convenient for mounting on smaller machines and it’s corrosion and weather-resistant for maximum longevity. And 200 watts RMS power is enough to run these speaker pods and then some.

Amplifier Specs

2-Channel

4Ω RMS Power Output 50W x 2 Channels

2Ω RMS Power Output 100W x 2 Channels

Topology Full Range Class D

THD

Frequency Response 20 Hz - 20k Hz

Crossover Fixed HPF/LPF @ 80 Hz, 12dB/Oct

Max Sensitivity 200mV

Maximum Input Signal 5V

Dimensions 4.65" x 5.71" x 1.61"

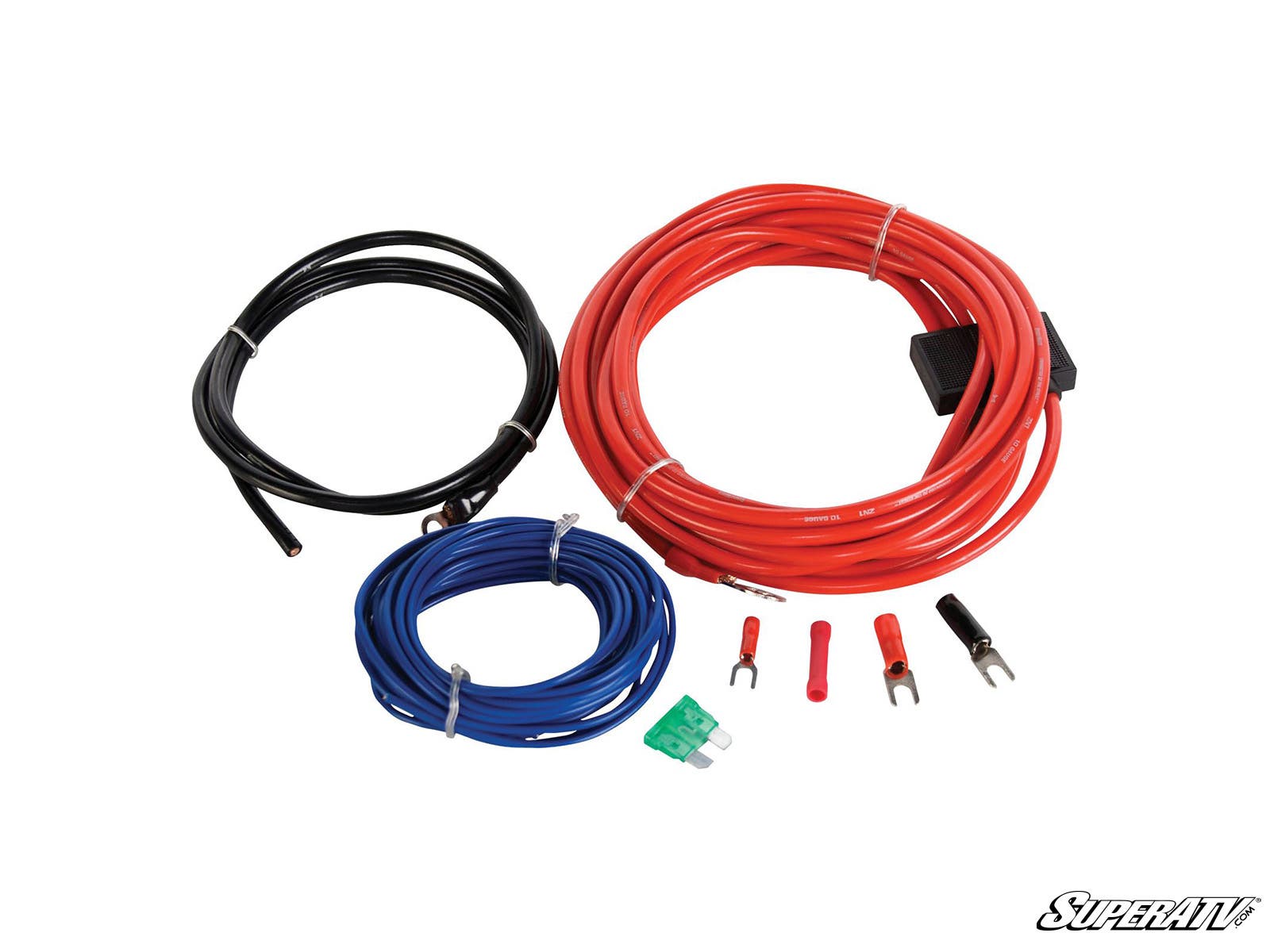

All the Wires and Cables You Need

MTX includes all the wiring you need to get your speaker pods up and running. You get a power kit to connect the amp to the battery, a stereo cable connector from your source to the amp, and 18 gauge speaker wires.

Wiring Kit Includes 3m (9.8') 10 AWG Red Power Cable with ATC Fuse Holder

3m (9.8') 10 AWG Black Ground Cable

3m (9.8') 22 AWG Remote Wire

10 AWG Ringer Terminal 5/16”

10 AWG Ring Terminal 3/16”

(2) 10 AWG Spade Connectors

18 AWG Red Butt Connector

30A ATC Fuse

Features

• Compact design
• Corrosion-resistant circuit board
• High and low pass crossovers for use with full-range speakers or subwoofers
• High and low-level inputs allow connection to both speaker and RCA input signals
• 2Ω Stable
• 2 Channels
• Footprint fits most OEM motorcycle radios
• Full Range class D topology
• Bridgeable
• Weather resistant
• (2 or 4) 6.5" Speaker Pods
• Fits bars between 1.75” and 2”
• Internal crossover network
• Impact resistant
• Integrated RGB lighting
